  4. Sichuan Yufeng Medical Equipment Co., Ltd.

Nursing trolley W3704
for instrumentsmedicinewith drawer

nursing trolley
nursing trolley
Add to favorites
Compare this product

Characteristics

Applications
nursing
Use
for instruments, medicine
Components
with drawer, 1-shelf, 1-tray, with waste bin
Other characteristics
medical

Description

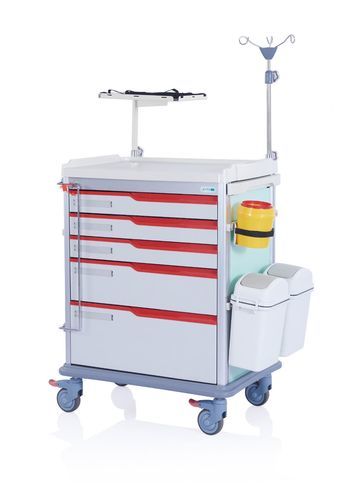

1,Size: L790mm*W660mm*H920mm 2, Configuration: The whole vehicle configure a drawer with lock,two layers of platform with fence, one ABS file box, one Needle Disposal Container, two Plastic Flip Waste Bins. Aluminum alloy handrail equipped at the left side making push the cart easier. 4 dia.100mm rubber silent castors, 2 with brake, outer adopts ABS anti-winding system. 3, Frame: Adopts aluminium alloy pillar. Side boards and back board adopt 4mm ABS engineering aluminium-plastic plate. 4, Platform: Top and bottom boards use ABS engineering plastic, one-time injection molding. Three-side ABS fence around the platform. 5, Drawer: Adopts high quality high-grade three-fold damp slide rail with the function of self-locking in the rear, the effective telescopic distance is 60cm. Inner equipped with movable ABS plastic partition and the standard identification card. The front plate and frame of the drawers are made of sheet steel and the drawer handle is arc ABS plastic. The basket can be combined at will. Each basket can bear 60kg at least. Size of the plastic basket: M:L400mm*W600mm*H100mm,  6, IV Pole: The adjustable IV pole uses aluminium alloy round tube.There are two crossbars with 4 ABS hooks on it respectively.

VIDEO
