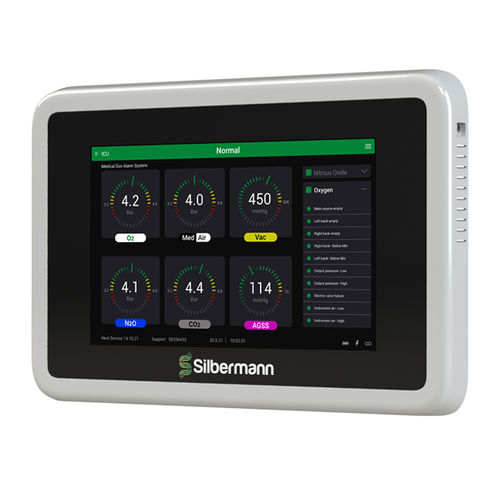

Medical gas alert system 71825 series

with automatic detection

The Silbermann touch screen alarm panel brings a smarter approach to medical gas monitoring. With a 12" display, it functions as both a main and area alarm unit, giving you real-time visibility into local medical gas pressure data as well as information from Manifold Systems. Fully compliant with the latest NFPA 99, EN ISO 7396-1, and HTM 02-01 standards. Built-in high-security technology keeps every piece of displayed and transmitted data safe from malicious attacks.

Features and benefits

• LCD 12” touch screen display.
• Displays 1-6 local gases/ gauges alarms together with 1-16 remote digital alarms on the screen.
• Aesthetics & smooth design without buttons for infection control.
• Built-in relay for remote annunciator applications.
• Commissioning for local gas/ gauges – Enables the identification of gas leaks before commissioning.
• Secured Ethernet-based network communication between all units.
• Unique secure authentication of each unit to avoid fake/masking of alarms.
• Remote viewing through a mobile device or remote computer.
• Gas-specific sensor with DISS nut and nipple to avoid mechanical cross-connection.
• For Future Use- disables a gas alarm until the gas pipeline infrastructure is complete. Multi-linguistic- Supports English, Spanish, Russian, Arabic & Chinese.
• Commissioning for local gas/ gauges – Enables the identification of gas leaks before commissioning.
• Gauges color trend arc showing the gas pressure status.
• Expandable digital menu-Menu expands automatically in case of an alarm within it to show that alarm.
• Adjustable digital alarm color (Red/ Yellow).
• Enable/ Disable the digital alarm.
• Adjustable digital alarm type (NO/ NC).
• Automatic adjustment of screen brightness (day & night mode).
• Self-diagnostics with error display for problem identification.
• Event logging, recording all alarms and panel activities.
• Periodic maintenance alert.
• Customizable text for digital alarms & panel location.
• Remote monitoring of dry contacts of gas pressure alarm conditions, including:
• High & Low alert,
• Below Min alert,
• Any Alarm.
• Hinged panel opening for easy installation and maintenance.
• On-site adjustment of HI and LOW set-points for each Gas & gas unit.
• Highly accurate solid-state pressure piezo-resistive transducer.
• Built-in relay for remote annunciator applications.
• Gas-specific digital sensors mounted locally or remotely, up to 1500m, utilizing 22-gauge twisted pair.
• Wifi communication is available.
• Remote monitoring (Via TCP/IP Modbus) through the building management system is available.

Applicable Standards
Medical Gas Systems: NFPA 99, EN ISO 7396-1 & HTM02-01 requirements.
