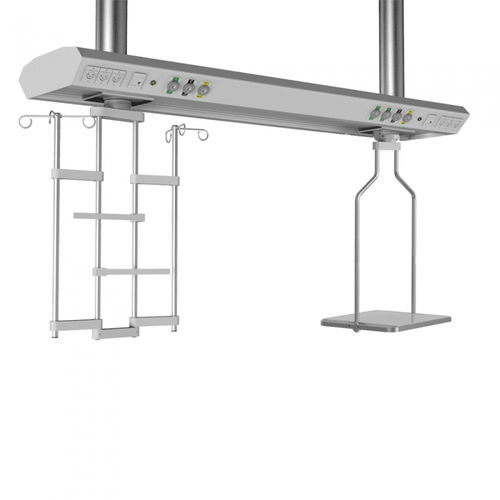

Supply beam system ISS8004300

ceiling-mountedICUmodular

Silbermann's Bridge system is designed especially for ICU's provides supply of medical gases, electric sockets, communication, grounding and other supply required for the patient & the medical staff in ICU bed or room. Our system is modular and provides mounting solution for all types of required medical equipment such as monitors, ventilators fusion & syringe pumps, vacuum therapy etc. General 1.1 The ceiling suspended bridge supply system provides for supply of medical gases, electric sockets, communication, grounding and other supplies require to the patient in ICU bed or room, including device to connect secondary equipment, shelve support for monitors and breathing equipment and devices to connect infusion and siring pump, basket etc; 2 Description 2.1 The bridge includes: 2.1.1 Two drop tubes per bed which are anchored to the concrete ceiling with decorative ceiling covers. Feeding of electric cable \ wires, medical gases hoses, communication and other supplies to the bridge is done through these tubes. 2.1.2 A horizontal beam (2.5 meter long) per bed is anchored to the drop tubes and includes: two gliders (per bed) onto which two carriers are connected; dry and wet. 2.1.3 The dry side carrier includes two shelves with two integrated S.S. hanging rails 10x25 mm on each shelve. 2.1.4 The wet side carrier includes: two S.S. poles 1m. long with 3 S.S hooks on each pole. 3 Technical specification 3.1 The bridge is made of extruded aluminum profiles, White powder coated color Ral 9016 and a decorative colored strip. 3.2 Feeding of medical gas is done through drop tubes with flexible hoses. 3.3 Dimensions:
