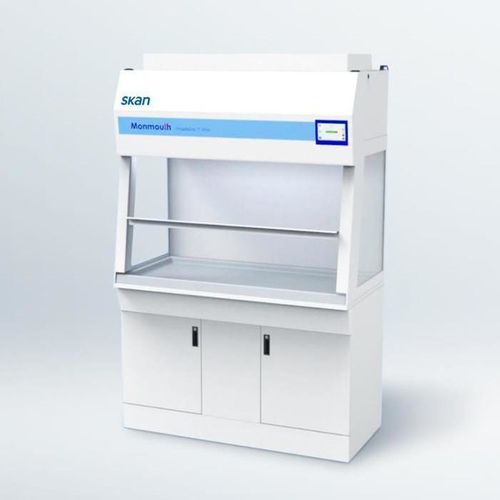

Containment fume hood CT

chemical filtrationfor research laboratoriesfor the food industry

Overview
The CT is a laboratory fume cupboard with activated carbon filter options designed for personal protection. The CT series features a sliding or folding front, automatic airflow control, full-colour touchscreen operation with airflow and filter alarms, plus audible and visual alerts. It uses containment technology compliant with COSHH (tested to BS7989:2001) and supports a range of filters for particles, aerosols and chemicals.

Applications

• Biotech & Life Sciences
• Laboratory & Research
• Food Industry
• Hospital & Pharmacy

Protection category

• Personal protection
• Environmental protection

Key characteristics

• Tested user protection: verified protection systems for personnel and products
• Versatile filter range: selection of filters for different particles, aerosols and chemicals
• HEPA 14 and activated carbon filter options
• Automatic filter detection: system recognises installed filter types and adjusts operating parameters
• Flexible front access: sliding or folding front panel to facilitate access while minimising contamination risks
• Automatic airflow control and compensation to ensure consistent protection and reliable filter performance
• Full-colour touchscreen with airflow and filter alarms (audible and visual)
• Alarm functions for airflow and filter status
• Energy-efficient and quiet operation
• Long-term reliability with a 5-year warranty

Requirements

• Protection from hazardous substances: targeted airflow and filtration to minimise contamination in the work area
• Odor neutralization: activated carbon variants effectively reduce solvent vapours and unpleasant odours
• Flexible installation options: compact design allows integration into varied laboratory layouts

Functional principle
Airflow is drawn inward to prevent released aerosols from leaving the working area, providing personal protection. Different activated carbon variants capture solvent vapours at the source; automatic airflow control and filter detection optimise performance.

CT at a glance / Standards
Standard: COSHH (tested according to BS7989:2001)
Filter type: HEPA 14, activated carbon

Technical specification (models)
CT 800:
Outer dimensions (W x D x H) in mm: 800 x 700 x 1285
Inside dimensions, working space (W x D x H) in mm: 784 x 680 x 840
Height of the work opening (front glass closed / front glass open) in mm: 470 x 274 / 720 x 630

CT 1100:
Outer dimensions (W x D x H) in mm: 1100 x 700 x 1285
Inside dimensions, working space (W x D x H) in mm: 1085 x 680 x 840
Height of the work opening (front glass closed / front glass open) in mm: 880 x 274 / 1020 x 630

CT 1400:
Outer dimensions (W x D x H) in mm: 1400 x 700 x 1285
Inside dimensions, working space (W x D x H) in mm: 1385 x 680 x 840
Height of the work opening (front glass closed / front glass open) in mm: 1100 x 274 / 1320 x 630

CT 1800:
Outer dimensions (W x D x H) in mm: 1800 x 700 x 1285
Inside dimensions, working space (W x D x H) in mm: 1785 x 680 x 840
Height of the work opening (front glass closed / front glass open) in mm: 1500 x 274 / 1720 x 630

Characteristics / technical specifications

• Series name: CT
• Standard compliance: COSHH, tested to BS7989:2001
• Filter types available: HEPA 14; activated carbon variants for solvent vapours
• Control and interface: full-colour touchscreen with airflow and filter alarms (audible and visual)
• Automatic features: filter detection and automatic airflow compensation
• Front access: sliding or folding front panel
• Alarm functions: airflow and filter alarms
• Operation: energy-efficient and quiet
• Warranty: 5-year warranty
• Available model widths (outer W x D x H mm): CT 800 (800 x 700 x 1285), CT 1100 (1100 x 700 x 1285), CT 1400 (1400 x 700 x 1285), CT 1800 (1800 x 700 x 1285)
