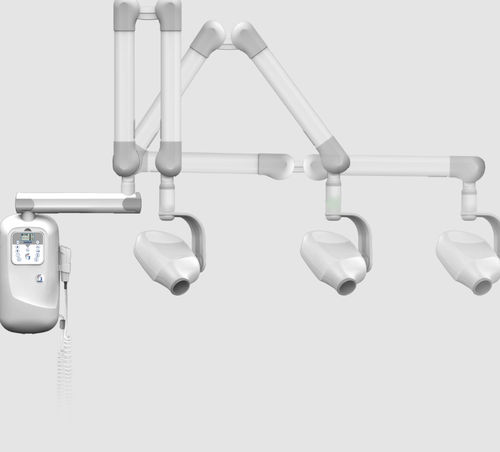

Digital intraoral X-ray system Intraskan DC

wall-mounted70 kV60 kV

Generator type: High-frequency, microprocessor controlled, constant potential (DC) Generator power: 560 Watts (max) Tube current: 4 mA–8 mA Settable (Step size 1 mA) Exposure time: 10 ms to 4000 ms (0.5 FS) 10 ms to 3500 ms up to 6 mA (0.4 FS) 10 ms to 200 ms for 7 mA & 8 mA (0.4 FS) Total filtration : >2.5 mm Al equivalent at 70 kV Leakage radiation at 1m: <0.88 mGy in 1 hr (100 mR in 1 hr) Source to skin distance: 230 mm (in-built), 310 mm with optional cone Want to know how INTRASKAN DC is unique? Extremely light-weight, easily manoeuvrable and versatile Counterbalance scissor arm The extension arm & the scissor arm provide multiple positioning options during endodontic/periapical radiography
