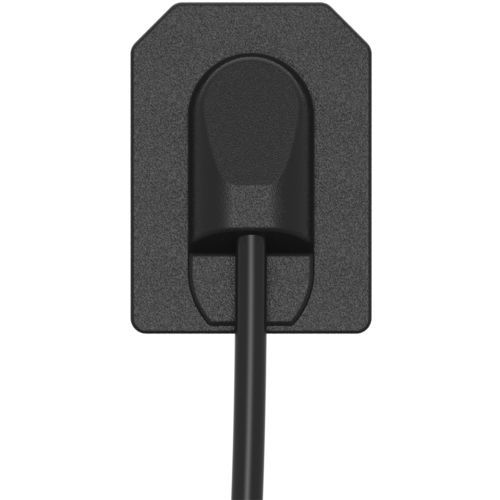

Intraoral flat panel sensor INTRASKAN digiportable
Add to favorites
Compare this product
Characteristics
- Applications
- intraoral
- Options
- portable
Description
Product Overview
Key Features
Image Functions
Variants
Additional Notes
Technical specifications
- INTRASKAN digi delivers high‑resolution intraoral images for dental diagnosis and treatment planning.
- Provides bone densitometry indication to support clinical assessment.
- Supplied with standard accessories and a one‑year warranty.
Key Features
- CMOS sensor technology with CsI (+FOP) scintillator.
- Effective pixels: 1.5 MP (Size 1).
- Resolution: 20 Lp/mm; grey levels: 16384 (14‑bit); dynamic range: 58 dB.
- USB 2.0 interface; sensor ingress protection: IP67.
Image Functions
- Image enhancement (gamma correction, histogram equalization).
- Brightness and contrast adjustments; zoom, pan, rotate, flip, invert.
- Measurement tools: length, angle, point and curve.
- Advanced tools: torch/magnify, image fuse/subtract, 3D colour simulation and bone densitometry indication.
Variants
- INTRASKAN digi with CMOS Size‑1 sensor assembly
- INTRASKAN digi with CMOS Size‑2 sensor assembly
Additional Notes
- Intuitive user interface designed for an efficient dental workflow.
- Comprehensive, user‑friendly software for image viewing, processing and documentation.
Technical specifications
- Sensor technology: CMOS-based sensor.
- Scintillator: CsI (+FOP).
- Effective pixels: 1.5 MP (Size 1).
- Resolution: 20 Lp/mm.
- Grey levels: 16384 (14‑bit); Dynamic range: 58 dB.
- Interface: USB 2.0.
- IP ingress protection rating: IP67.
- Sensor cable length: 2 m.
- System requirements: Windows 7 / 8.1 / 10 (32 or 64 bit recommended); CPU ≥ 2.30 GHz; Intel Core i3 or above; Memory 4 GB or higher; Hard disk 500 GB; UPS 500 VA; Monitor 15" or above with 1366 x 768 resolution.
- Warranty: One year (standard accessories included).
