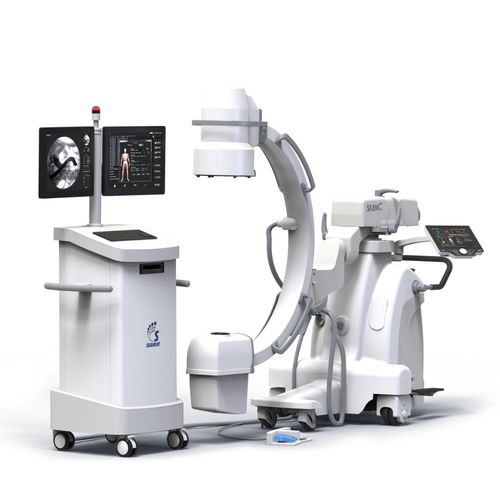

Mobile C-arm Skan C

with video column

High-frequency generator technology with a switching range from 80-250 kHz 3.5 kW dual processor monoblock generator with proprietary radiation shielding technology 9 inch Image intensifier with 1k x 1k acquisition matrix, CCD technology kV range: 40 – 110kV in Steps of 1 kV mA range for normal fluoroscopy: 0.2 mA to 3 mA High-level fluoroscopy: 0.2 mA to 8 mA Pulsed fluoroscopy: 0.2 mA to 12 mA Pulse rate (PPS): 2,4,6,8 Focal spot value: 0.6mm/1.8 mm Maximum housing heat content: 1150 kHU Perfectly balanced system allows for effortless movement of the C-arm Overall dimensions: width 800mm – 850mm, length 2700 +200 mm max height 1800 +450 mm max Source to image distance: 970 mm Immersion depth: 670 mm Clear space (free space): 770 mm Vertical travel: 450 mm max Horizontal travel: 200 mm max C-arm movements: Orbital rotation -40° to +90° Max Angulation (C-Rotation) ± 180° Min and Wig-Wag (Swivel range) ± 12.5° @ Min Dual 19” medical-grade monitor Integrated DICOM solution Advanced image processing — metal correction, ROI selection Measurements tool to measure length and angle of image under study Seamless DICOM integration included allowing for the transfer of images to your secure database Incredible Speed — reboot the application within 45 seconds UPS battery backup to prevent loss of patient data Remote Diagnostics – save time and money! Want to know how Skan C is unique ? Laser aimer to reduce the dose Virtual collimation for exposure-less alignment of the region of interest Multi-window interface for comparative study Vascular mode, DSA, trace & roadmap features as standard Virtual dose management system to ensure absolute safety
