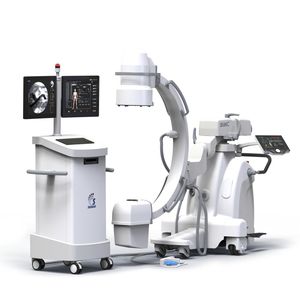

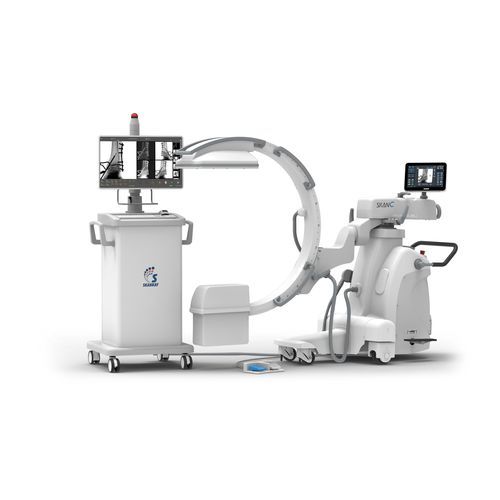

Mobile C-arm Skan C Pulsar

with flat panel detectorwith video column

Overview
The Skan C Pulsar is a mobile C-arm imaging system for radiology, surgery and interventional procedures. It combines a 21 x 21 cm flat-panel detector, pulse-mode fluoroscopy and advanced image processing in a compact, manoeuvrable chassis with DICOM connectivity and remote diagnostics.

Key Functional Highlights

• 21 x 21 cm flat panel detector with high dynamic range
• Pulse-mode operation to reduce patient dose
• Motorized asymmetric collimation for targeted irradiation
• Rotating anode X-ray tube for increased power and longer exposures
• Multifunction 15" touch console with mirrored controls on monitor cart
• Remote diagnostics and PACS/DICOM integration
• Laser aimer and virtual collimation for exposure-free alignment
• Virtual dose-management and dose-saving features

Imaging & Software Features

• Vascular mode with DSA, trace and roadmap as standard
• Advanced image processing including metal correction and ROI selection
• Measurement tools for length and angle on images
• Multi-window display and selectable reference images to monitor procedure progress
• PACS-ready transfer and full DICOM compatibility

Ergonomics & Hardware

• 32" Full HD medical-grade monitor, height adjustable
• 15" TFT LCD touch console for operation
• Compact manoeuvrable design with handles and steering mechanism
• UPS battery backup to prevent data loss and rapid application reboot (~45 s)
• Compact C-arm with orbital rotation -40° to +90° and C-rotation ±180°

Included / Packaging Notes
The system is supplied with standard accessories and a one-year warranty as specified.

Technical specifications

• Generator: 3.5 kW processor-controlled high-frequency generator
• Detector: 21 x 21 cm flat panel, 1k x 1k acquisition matrix
• kV range: 40–120 kV (1 kV steps)
• mA range: 2–35 mA (normal and pulsed fluoroscopy, digital snapshot)
• Pulse rates (PPS): 2, 4, 6, 8, 10, 12
• Focal spot: 0.3 mm / 0.6 mm
• Max housing heat content: 900 KJ
• Monitor: 32" Full HD medical-grade
• Dimensions (approx): width < 830 mm; length 2400 +200 mm max; height 1800 +450 mm max
• SID: 970 mm; immersion depth: 670 mm; free space required: 770 mm
• Vertical travel: 450 mm; horizontal travel: 200 mm
• Collimator: motorized asymmetric collimation with 6 blades (4 hard + 2 soft)
• X-ray tube: rotating anode
• Connectivity: DICOM / PACS-ready; remote diagnostics
