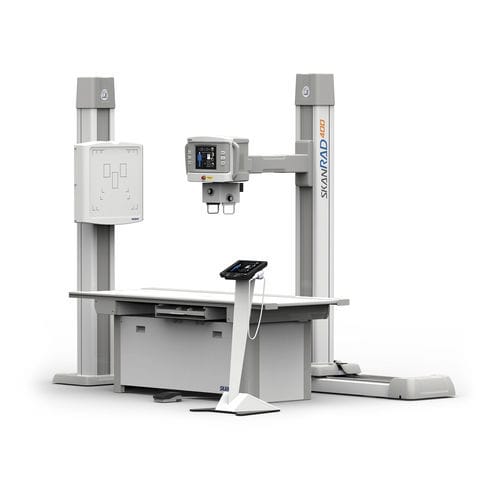

Digital X-ray system SkanRAD 400

for multipurpose radiographywith floor-standing buckyfixed

32 kW, 160 kHz High Frequency, Constant Potential (DC), FPGA & Microcontroller based Generator kV Range – 40 kV – 125 kV mA Range – 10 mA – 400 mA (upto 630 mAs) mAs Range – 0.32 mAs to 630 mAs Exposure Time – 5 ms to 5 sec Dual focus rotating anode (IEC60336) – 1.0/2.0 mm & 0.6/1.3 mm Tube head heat capacity – 900 kJ Anatomical Programming setting – user Programmable 1250 Max with patient position indicator Tube Head Rotation – ±120° Tube head column Rotation – ±180° 10.4 inch Intuitive multifunction touch screen console on tube head Input Voltage – 3 phase 400-415V AC, 50-60 Hz Want to know how SkanRAD 400 is unique? Ergonomic Design and Easy workflow Features an ergonomic design and simple workflows that help return the focus to your patients. Motorized hardware, minimal conduit/cables, tracking, and automation for faster examinations place less physical burden on your technicians. Tube head mounted – 10.4” Touchscreen console Parameter configuration, Technique selection Button, Digital Angle display and Intuitive patient positioning guidance are available on tube head LCD display. Scalable DR configuration Skanrad400 offers the versatility necessary to address a broad range of clinical applications in a cost-effective manner. Smooth operation, the latest generation CSI wireless/fixed detectors, and cutting-edge post-processing features help assure comprehensive performance.
