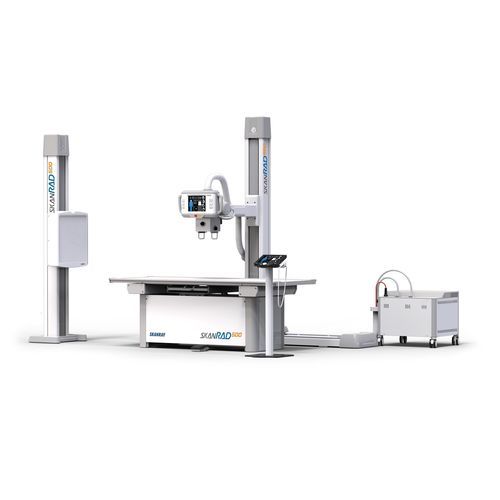

Digital X-ray system SkanRAD 500

for multipurpose radiographywith floor-standing buckyfixed

Overview
SkanRAD 500 is a digital radiography (DR) imaging system designed for high-throughput clinical environments. It delivers automated image stitching, synchronized movement with auto-tracking and an on-tube patient positioning guidance system. The tube head integrates a 10.4" touchscreen console with parameter configuration, technique selection buttons and a digital angle display.

Key features

• Auto stitching for multi-image exams
• Synchronized movement and auto-tracking for fast, seamless examinations
• Patient positioning guidance system mounted on the tube head
• Tube head-mounted 10.4" touchscreen console with parameter configuration, technique selection and digital angle display
• Ergonomic motorized design with minimal cabling to streamline workflows
• Scalable DR configuration supporting wired and wireless detectors
• Attachable/detachable grids for flexible use on table and chest stand
• Rotating Bucky enabling imaging without panel removal

Package
Delivered with standard accessories and one year warranty.

Technical specifications

• Generator: 40 kW, 50 kHz, high frequency, constant potential (DC); FPGA & microcontroller based
• kV range: 40–125 kV
• mA range: 10–500 mA
• mAs range: 0.1–1000 mAs
• Exposure time: 5 ms to 5 s (minimum 5 ms)
• Dual-focus rotating anode (IEC60336): 1.0/2.0 mm & 0.6/1.5 mm
• Tube head heat capacity: 900 kJ
• Anode heat content examples: 111 kJ (155 kHU) for Kailong; 100 kJ (140 kHU) for Canon
• Digital angle indicator on tube head
• Tube head column rotation: ±180°
• Horizontal stroke of tube head: 1500 mm
• Vertical stroke of tube head: 1455 mm
• Table Bucky stroke: 500 mm
• Chest stand Bucky stroke: 1300 mm
• Patient table weight capacity: up to 200 kg
• Supported detector sizes: 14"x17" and 17"x17" (wired/wireless)
• Input power: 3-phase 400–415 VAC, 50/60 Hz
