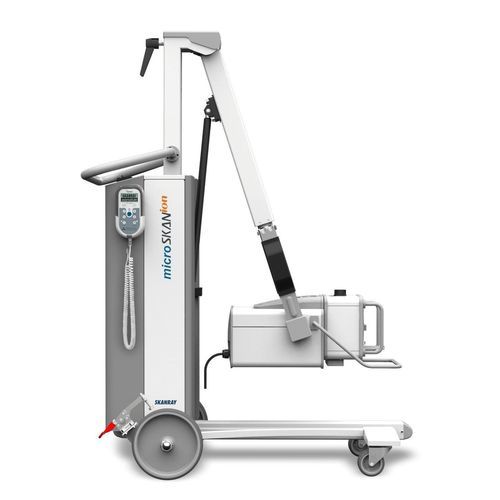

Digital mobile radiography unit Microskan Ion

Overview
Microskan ion is a battery powered mobile X-ray system designed for medical camps and remote locations with unreliable mains power. It incorporates a high-efficiency 200 kHz HF generator with a DSP-based dual processor to deliver high image fidelity and supports more than 100 chest X-rays on a full battery charge.

Key claims & usage

• Battery-powered mobile radiography — rapid deployment with instant power connection and clear battery level indication
• Intended for medical camps, remote sites and emergency scenarios with unstable mains supply
• Ergonomic tube head movements for straightforward patient positioning

Scope Of Supply (table)
Sl no | Description | Qty
1 | Microskan ion – HF Diagnostic X-Ray System | 1
2 | POWER CORD | 1
3 | USER MANUAL | 1

Clinical advantages

• High-efficiency 200 kHz HF generator with DSP-based dual processor for improved image fidelity
• Compact, ergonomic and portable design suitable for field deployment
• Battery operation enabling >100 chest X‑rays per full charge

Technical specifications

• Peak power: 2.8 kW
• Battery capacity: >100 chest X‑rays per full charge
• kV range: 40–100 kV
• mAs range: 0.32–200 mAs
• mA range: 10–60 mA
• Total weight: 110 kg
• Generator type: High-efficiency HF (200 kHz) with DSP dual processor
• Charging time (full): 6–7 hours
• Input power requirement: Single phase AC supply, 230 V
