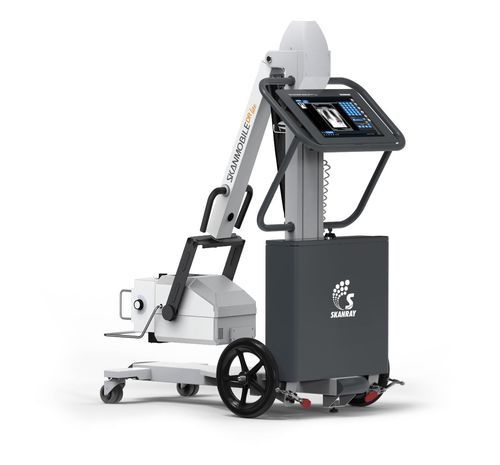

Digital mobile radiography unit Skanmobile DR Lite

Overview Skanmobile DR Lite is a compact, lightweight mobile digital radiography unit designed for mid-size hospitals, diagnostic rooms and clinics. It is the performance version of the Skanray Mobile DR family delivering high image quality in a portable workflow.

Key Features

• Compact & lightweight mobile DR unit
• Powered by a 4 kW high-frequency generator
• 200 kHz operating frequency; 100 mA, up to 250 mAs tube current/exposure capability
• Wireless, portable 14×17 in flat panel detector
• Wireless charging for the detector
• Focal spot: 1.8 mm
• Pre-set APR chart based on anatomy and patient size
• Multi-core processor for fast image processing
• 14-inch FHD touchscreen display
• Internal SSD for faster data access and system performance
• Interfaces: USB, LAN, HDMI
• Workstation with 6 hours backup

Additional Highlights

• CsI scintillator panel with 140 micron pixel size
• Durable carbon fiber rugged housing with protection from vibration and shock during transit
• High patient throughput with fast, reliable wireless connection and short duty cycle
• Intuitive, minimalist user interface to speed up workflow in emergencies

Technical specifications

• Generator: 4 kW high-frequency generator
• Operating frequency / tube: 200 kHz
• Tube current / exposure capability: 100 mA, up to 250 mAs
• Focal spot: 1.8 mm
• Detector: Wireless 14×17 in flat panel detector (CsI scintillator)
• Detector pixel size: 140 micron
• Detector charging: Wireless charging supported
• Image preview time: Review full resolution image within < 8 seconds of acquisition
• Storage capacity: Up to 30,000 images
• DICOM: DICOM 3.0 compliant with wireless network capability
• Display: 14-inch FHD touchscreen
• Workstation backup: 6 hours
• Storage medium: Internal SSD for faster access
• Interfaces: USB, LAN, HDMI
• Weight: Maximum 100 kg (230 V)
• Construction: Carbon fiber rugged housing; protection from vibration and shock
