Automatic external defibrillator CardiAid Pro+

for public spacefor ambulanceswith ECG monitor

Overview

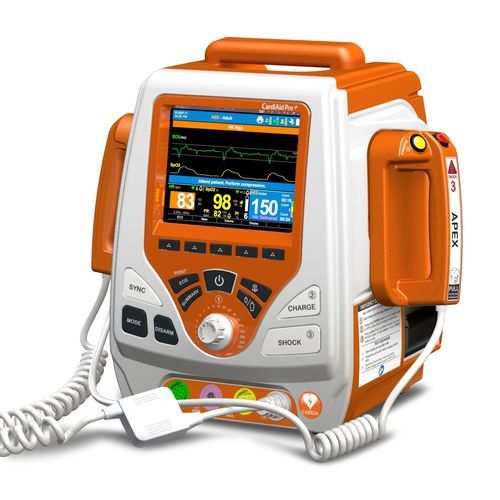

CardiAid Pro+ is a multifunctional emergency cardiac care device combining current-controlled IQ biphasic defibrillation, synchronized cardioversion, AED mode with voice prompts and non-invasive pacing. It integrates ECG monitoring (3-lead and 5-lead), optional NIBP and SpO2 modules, event data storage and a built-in thermal printer to support clinical workflows in hospitals, EMS and critical care settings.

Key features

• Current-controlled IQ biphasic defibrillation
• Synchronized cardioversion (SYNC/AutoSYNC)
• 3-lead and 5-lead ECG support with twin ECG view (up to 20 seconds on screen)
• <7 seconds charge time to 300 J from AC mains
• Battery capacity: over 100 shocks from a new fully charged battery (typical)
• Quick energy selection via rotary switch
• Data storage and event summary capability
• 6.5" colour LED display
• Built-in thermal printer
• AED mode with voice prompts for guided use
• Non-invasive demand and fixed pacing (40 mA)
• NIBP and SpO2 monitoring with alarms (upgradable)
• Suitable for adult and pediatric applications
• Multifunction pads usable for AED, pacing, defibrillation and monitoring

Scope of supply (example for one configuration)
Part Number | Description | Qty
1 | CardiAid Pro+ 3APE main unit | 1
2 | Power cord | 1
3 | 3L ECG cable – button end | 1
4 | ECG electrode disposable (adult) | 1
5 | Adult Plus cuff 28-40 cm / BIONET | 3

Additional product notes
CardiAid Pro+ supports energy settings from 1 J to 300 J and provides comprehensive emergency care functionality including defibrillation, SYNC/AutoSYNC, AED, pacing, ECG, SpO2 and NIBP (when equipped). The device can deliver shocks from AC mains if the battery is depleted and can be ready to shock in <7 seconds when powered from mains. Upgrade options include NIBP and Nellcor-compatible SpO2 modules.

Technical specifications

• Waveform: IQ biphasic, current-controlled
• Energy range: 1 J – 300 J
• Charge time: <7 seconds to 300 J (from mains)
• Battery performance: >100 shocks from a new fully charged battery (typical)
• Pacing: Fixed and demand pacing, 40 mA
• ECG: 3L / 5L support, twin ECG view up to 20 s on screen
• Display: 6.5" colour LED
• Printer: Built-in thermal printer
• AED: AED mode with voice prompts
• Monitoring: NIBP and SpO2 (with alarms) — upgradable
• Data: Event storage and summary capability
• Pads: Multifunction pads for adult & pediatric use
• Certifications: European CE and Indian CDSCO (as stated)
