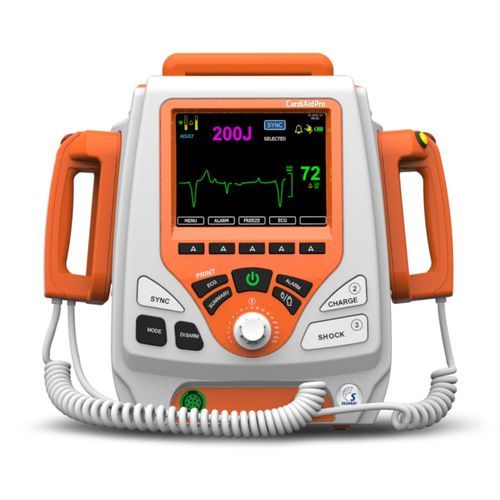

Automatic external defibrillator CardiAid Pro

for public spacefor ambulanceswith ECG monitor

Product overview CardiAid Pro is a current-controlled IQ biphasic defibrillator designed for clinical cardioversion and defibrillation. It supports rapid charging, selectable energy up to 300 J, integrated ECG monitoring and on-board event recording. The device can deliver shocks regardless of battery state by switching to AC mains when required.

Key features

• Current-controlled IQ biphasic defibrillation (patented waveform)
• Synchronized cardioversion
• 3-lead and 5-lead ECG support
• < 8 seconds to charge to 300 J (typical)
• > 100 shocks from a new, fully charged battery (typical)
• Quick energy selection via rotary knob
• Onboard data storage and event summary
• 6.5" colour LED display
• Built-in thermal printer for event records
• Battery-independent operation: can deliver shocks from AC mains

Scope of supply

• CardiAid Pro – Biphasic defibrillator — Qty: 1
• 3L ECG cable – button end — Qty: 1
• Power cord — Qty: 1
• Disposable adult ECG electrodes — Qty: 3

Certifications European CE certified; CDSCO (India) licensed.

Technical specifications

• Energy range: 1 J to 300 J (selectable)
• Waveform: Patented IQ biphasic, current-controlled
• Charge time: < 8 seconds to 300 J (typical)
• Battery performance: >100 shocks from a new, fully charged battery (typical)
• Operation without battery: Able to deliver shocks from AC mains (battery-independent operation)
• ECG support: 3-lead and 5-lead ECG compatible
• User interface: 6.5-inch colour LED display; rotary energy-selection knob; LED indicators
• Recorder: Built-in thermal printer for event printouts
• Data handling: Onboard data storage and event summary capability
• Controls: Quick energy selection via rotary knob; synchronized cardioversion mode
• Scope of supply: defibrillator unit, ECG cable, power cord, disposable adult ECG electrodes
