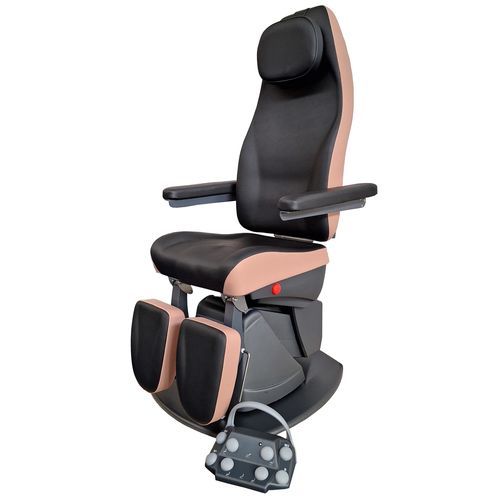

Podiatry treatment chair GRAPHITE

electricrotatingTrendelenburg

Overview
Designed to guarantee maximum patient comfort, GRAPHITE podiatry chair features an embracing upholstery in progressive-density polyurethane foam. The chair is delivered in an ambidextrous configuration to facilitate the operator's access and procedures.

Structure and movements

• Steel pantograph structure treated against oxidation
• 350° rotation system with progressive braking effect
• Pantograph lifting system
• 2 motorized movements: up/down and Trendelenburg (seat tilt)
• Reachable "examination table" position

Base and safety

• 15 mm thick steel anti-tipping base
• "SAFETY STOP" system activatable by patient and operator
• Rated lift load: 190 kg

Upholstery and comfort

• 100% Vegan, soft-hand upholstery
• Available in 18 colors
• Comfort upholstery option: mono or bicolor with additional 15 mm Memory Foam layer

Leg-rests and accessories

• Articulated leg-rests with 30° side opening
• Leg-rests mounted on telescopic slides with Extra Slyde System (up to 250 mm stroke)
• Tilting leg-rests for enhanced patient comfort; angular inclination up to 85° and tilting width up to 90°
• Armrest movable separately and independently

Controls

• Wireless single-touch foot control with 3 storable positions and automatic return to 0
• Progressive braking system on rotating structure

Models

• GRAPHITE: double mechanical leg-rests, 2 motors, articulated leg-rests with 30° side opening on telescopic slides with Extra Slyde System (250 mm stroke)
• GRAPHITE COMFORT: same configuration with Comfort upholstery (additional 15 mm Memory Foam), available mono or bicolor

Technical specifications

• Seat min. height: 580 mm
• Seat max. height: 980 mm
• Leg-rest angular inclination: 85°
• Backrest inclination: 80° (range -15° to -95°)
• Seat tilt (Trendelenburg): 30°
• Leg-rests max. end height: 1360 mm
• Podiatry chair weight: 95 kg
• Rated lift load: 190 kg
• Extra Slyde System stroke: up to 250 mm
• Tilting leg-rests angular width: 90°
• Rotating structure: 350° with progressive brake
• Pantograph lifting system
• Wireless foot control with 3 storable positions and automatic return to 0
• 100% Vegan upholstery available in multiple colours; Comfort adds 15 mm Memory Foam
