Medical ultrasonic bath VU14H1

laboratorydentalfor the decontamination of medical devices

Overview

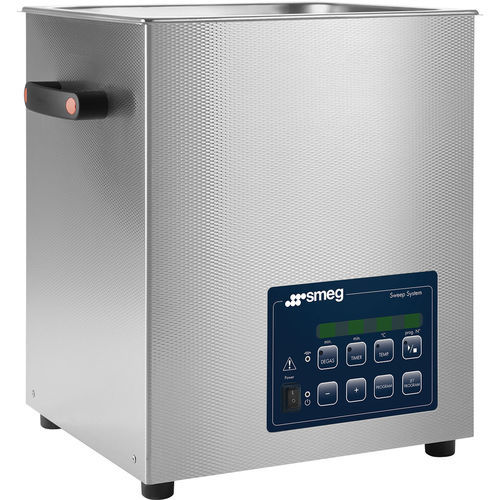

Ultrasonic bath VU14H1: 14 L ultrasonic cleaner designed for professional applications in Life Science, Health Care and Dental sectors. Smeg designed in Italy, combining functional features and a compact design with advanced technology.

Intended use

• Dental Care: cleaning rooms; packaging areas
• Health Care: central sterilization units; cleaning rooms
• Life Science: laboratory use
• Instruments solutions: Life science; Health science; Dental/medical science

Programs / Functions

• SWEEP Function: Yes
• Jet Program: Yes
• Degassing system: Yes
• Preset timer before start: 0 - 99 min
• Water heating function: 0 - 70 °C

Materials and general features

• Tank capacity: 14 L
• Tank material: AISI 304
• External casing material: AISI 304
• Ultrasound frequency: 39 kHz +/- 1 kHz

Electrical connection

• Electrical connection: 1/N/PE 230/240V - 50/60 Hz
• Voltage (V): 230-240 V
• Frequency: 50/60 Hz
• Plug: (F;E) Schuko

Interface

• Display: 2-digit

Logistic information

• Product dimensions (LxWxH) (mm): 425 x 440 x 340
• Width: 440 mm
• Depth: 340 mm
• Height: 425 mm
• Net weight: 11.570 kg

Regulation / Manuals and certifications

• Medical device according to Regulation (EU) 2017/745 MDR - Risk class I: Yes
• DMS reference: Version 01 - 26/06/2024

Characteristics / Technical specifications

• Tank capacity: 14 L
• Tank material: AISI 304
• External casing material: AISI 304
• Ultrasound frequency: 39 kHz +/- 1 kHz
• Timer: 0 - 99 min
• Water heating: 0 - 70 °C
• Power supply: 1/N/PE 230/240V - 50/60 Hz
• Plug: (F;E) Schuko
• Display: 2 digits
• Dimensions (mm): 425 x 440 x 340
• Net weight: 11.570 kg
• MDR compliance: Risk class I
