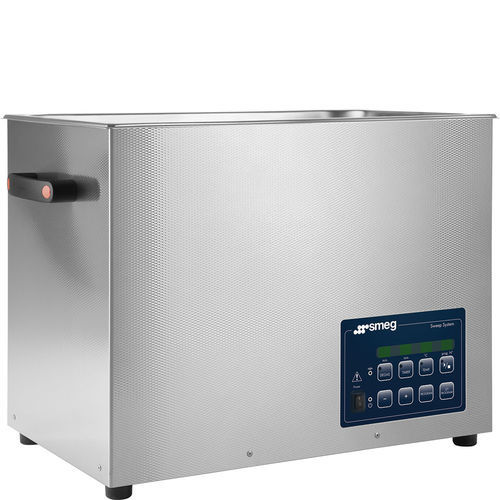

Medical ultrasonic bath VU28H1
laboratorydentalfor the decontamination of medical devices

Medical ultrasonic bath - VU28H1 - SMEG Instruments - laboratory / dental / for the decontamination of medical devices
Medical ultrasonic bath - VU28H1 - SMEG Instruments - laboratory / dental / for the decontamination of medical devices
Medical ultrasonic bath - VU28H1 - SMEG Instruments - laboratory / dental / for the decontamination of medical devices - image - 2
Medical ultrasonic bath - VU28H1 - SMEG Instruments - laboratory / dental / for the decontamination of medical devices - image - 3
Medical ultrasonic bath - VU28H1 - SMEG Instruments - laboratory / dental / for the decontamination of medical devices - image - 4
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
medical, laboratory, dental, for the decontamination of medical devices
Other characteristics
single-phase, stainless steel
Technology
ultrasonic, electric
Operation
automatic
Capacity

28 l
(7.4 gal)

Description

Main features
  • Tank capacity: 28 L
  • Medical device according to Regulation (EU) 2017/745 (MDR) - Risk class I: Yes
  • Tank material: AISI 304 stainless steel
  • Ultrasound frequency: 39 kHz ± 1 kHz


Intended applications
  • Dental care: decontamination and packing areas
  • Health care: central sterilization; washing rooms
  • Life science: laboratories
  • Instrument solutions: life science, health science, dental/medical science


Programs / Functions
  • SWEEP function: Yes
  • BOOST function: Yes
  • Jet Program: Yes
  • Degassing system: Yes
  • Pre‑start timer: 0 - 99 min
  • Water heating: 0 - 70 °C


Technical specifications (summary)
  • External casing material: AISI 304
  • Tank capacity: 28 L
  • Tank material: AISI 304
  • Ultrasound frequency: 39 kHz ± 1 kHz
  • Product dimensions (mm): 425 x 600 x 330


Electrical connection
  • Connection: 1/N/PE 230/240 V - 50/60 Hz
  • Voltage: 230-240 V
  • Frequency: 50/60 Hz
  • Plug: (F;E) Schuko


Manuals and certifications
  • Medical device according to Regulation (EU) 2017/745 (MDR) - Risk class I


Interface
  • Display: 2 digits


Logistics information
  • Product width (mm): 600
  • Product depth (mm): 330
  • Product height (mm): 425
  • Net weight: 16.000 kg


Medical device regulation
  • DMS reference: Version 01 - 26/06/2024


Characteristics / technical details
  • Model: VU28H1
  • Brand: Smeg
  • Tank capacity: 28 L
  • Tank material: AISI 304
  • External casing material: AISI 304
  • Ultrasound frequency: 39 kHz ± 1 kHz
  • Dimensions (W x D x H) mm: 600 x 330 x 425 (combined indication from width, depth, height fields)
  • Dimensions reported as product (mm): 425 x 600 x 330
  • Net weight: 16.000 kg
  • Power supply: 1/N/PE 230/240 V - 50/60 Hz
  • Voltage: 230-240 V
  • Supply frequency: 50/60 Hz
  • Plug: (F;E) Schuko
  • Display: 2 digits
  • Preselected timer: 0 - 99 min
  • Water heating: 0 - 70 °C
  • Main functions: SWEEP, BOOST, Jet Program, Degassing system
  • Medical device conformity: MDR (EU) 2017/745 - Class I
  • DMS reference: Version 01 - 26/06/2024
