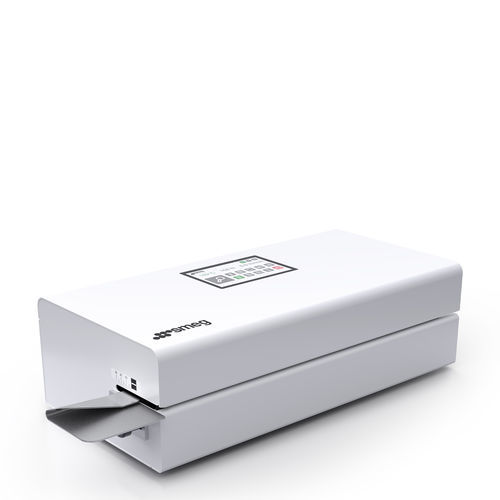

Medical thermosealer SGR300S-PVdentalfor central sterilization unitsautomatic
Add to favorites
Compare this product
Characteristics
- Applications
- medical, dental, for central sterilization units
- Operation
- automatic
- Container type
- for medical packaging
- Product applications
- for surgical instruments
- Configuration
- benchtop
- Options
- with touchscreen, with printer, rotary, with temperature control
- Seal width
12 mm
(0 in)- Sealing speed
Max.: 13,000 mm/min
(9 in/s)Min.: 5,000 mm/min
(3 in/s)- Sealing temperature
Max.: 220 °C
(428 °F)Min.: 0 °C
(32 °F)- Weight
16.2 kg
(35.7 lb)- Length
26 cm
(10 in)- Width
61 cm
(24 in)- Height
16 cm
(6 in)
Description
Overview
Target
Aesthetics
Type
Technical Features
Programs / Functions
Electrical Connection
Interface
Logistic Information
Characteristics / Technical specifications
- Product family: Thermosealers for medical/sterile packaging
- Model / Code: SGR300S-PV
- Colour: White
- Rotating sealing: Yes
- Validatable sealing process according to EN ISO 11607-2: Yes
Target
- Dental care: packaging room
- Healthcare: CSSD (Central Sterile Services Department)
- Applications: Health science, dental and medical instrument packaging
Aesthetics
- Colour: White
Type
- Product family: Thermosealers (medical packaging)
Technical Features
- Validatable sealing process according to EN ISO 11607-2: Yes
- Seal margin: 0–35 mm
- Sealing temperature range: 0–220 °C
- Sealing seam width: 12 mm
- Sealing speed: 5–13 m/min
Programs / Functions
- Rotating sealing: Yes
- Stand-by function: Yes
- Automatic start function: Yes
Electrical Connection
- Voltage: 230 V
- Frequency: 50 Hz
- Plug type: (F;E) Schuko
Interface
- Display: 5" touch screen
- USB ports: 2
- RS232 serial ports for PC connection: 2
- Traceability data: print-out on the packaging
- Printer: Yes (print on packaging)
- Barcode scanner: Optional
- LAN connection: Yes
Logistic Information
- Width: 610 mm
- Depth: 255 mm
- Height: 155 mm
- Net weight: 16.200 kg
Characteristics / Technical specifications
- Model: SGR300S-PV
- Product family: Thermosealers (medical)
- Rotating sealing: Yes
- Validatable sealing process (EN ISO 11607-2): Yes
- Sealing temperature range: 0–220 °C
- Sealing speed: 5–13 m/min
- Sealing seam width: 12 mm
- Seal margin: 0–35 mm
- Display: 5" touch screen
- Printer: Yes (print-out on the packaging)
- USB: 2 ports
- RS232: 2 ports
- LAN connection: Yes
- Barcode scanner: Optional
- Voltage / Frequency: 230 V / 50 Hz
- Plug type: (F;E) Schuko
- Colour: White
- Dimensions (W x D x H): 610 x 255 x 155 mm
- Net weight: 16.200 kg
