Medical thermosealer SGR200S-0V
for central sterilization unitsdentalautomatic

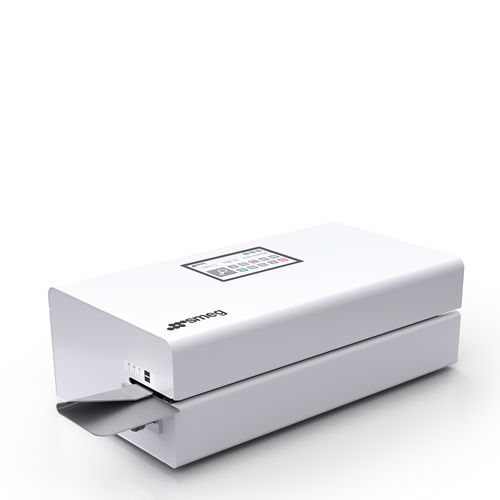

Medical thermosealer - SGR200S-0V - SMEG Instruments - for central sterilization units / dental / automatic
Medical thermosealer - SGR200S-0V - SMEG Instruments - for central sterilization units / dental / automatic
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
medical, for central sterilization units, dental
Operation
automatic
Container type
for medical packaging
Configuration
benchtop
Options
rotary, with touchscreen, with temperature control
Seal width

12 mm
(0 in)

Sealing speed

Min.: 5,000 mm/min
(3 in/s)

Max.: 13,000 mm/min
(9 in/s)

Sealing temperature

Min.: 0 °C
(32 °F)

Max.: 220 °C
(428 °F)

Weight

14.7 kg
(32.4 lb)

Length

26 cm
(10 in)

Width

57 cm
(22 in)

Height

16 cm
(6 in)

Description

Intended use
  • Dental Care: packaging area
  • Health Care: sterilization departments
  • Instruments solutions: Health Science; Dental/medical science


Aesthetics
  • Colour: White


Type
  • Product family: Heat sealers


Technical characteristics
  • Sealing process validatable according to EN ISO 11607-2: Yes
  • Sealing margin: 0-35 mm
  • Sealing temperature: 0-220°C
  • Sealing width: 12 mm
  • Sealing speed: 5 - 13 m/min


Controls and functions
  • Rotary sealing: Yes
  • Stand-by function: Yes
  • Automatic start function: Yes


Electrical connection
  • Voltage (V): 230 V
  • Frequency (Hz): 50 Hz
  • Plug: Schuko (Type F/E)


Interface
  • Display: Touch Screen 5"
  • USB ports: Yes, 2
  • RS232 serial port for PC connection: Yes, 2
  • Barcode scanner: Optional
  • LAN port for network connection: Yes


Logistical information
  • Product width: 565 mm
  • Product depth: 255 mm
  • Product height: 155 mm
  • Net weight: 14.7 kg


Technical specifications
  • Model: SGR200S-0V
  • Colour: White
  • Sealing process validatable according to EN ISO 11607-2: Yes
  • Sealing margin: 0-35 mm
  • Sealing width: 12 mm
  • Sealing temperature: 0-220°C
  • Sealing speed: 5 - 13 m/min
  • Rotary sealing: Yes
  • Display: Touch Screen 5"
  • Connectivity: 2×USB, 2×RS232, LAN (barcode scanner optional)
  • Voltage/Frequency: 230 V / 50 Hz
  • Dimensions (W×D×H): 565 × 255 × 155 mm
  • Net weight: 14.7 kg
