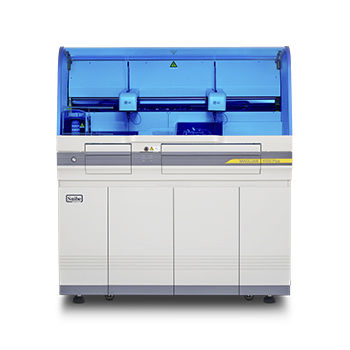

Automatic immunoassay analyzer MAGLUMI 4000 Plus

for clinical diagnosticchemiluminescencerandom access

Feature： ● Throughput: up to 280 tests/hour ● 24 hours ready to use ● Time to first result:16 minutes Specification Principle of Luminescence ● Non-enzyme involved flash chemiluminescence, long stability of reagents ● ABEI label, stable in acid and alkaline solution Modes of Operation ● Random, Batch and STAT Sample Loading ● Up to 144 sample tubes ● Continuous loading, STAT available ● Barcode reader recognition or analyzer auto numbered ● LIS connection, auto read sample info ● Refrigerated sample area with independent power supply Reagent Loading ● 25 reagents on board ● Continuous loading ● RFID reading all info of reagent ● Refrigerated reagent area Reagent Features ● Integrated kit, ready-to-use, no pretreatment required ● Integrated kit including calibrators ● Using superparamagnetic microbeads ● RFID tag storing all info of reagent ● RFID tag with built-in master curve ● 2-point calibration to adjust master curve ● Calibration stability: Max 4 weeks Other Features ● Clot detection ● Liquid level detection for reagent ● Optional ratio for sample dilution ● Auto dilution for high concentration sample ● Constant 37℃ incubation ● 15-30℃ Operating Temperature
