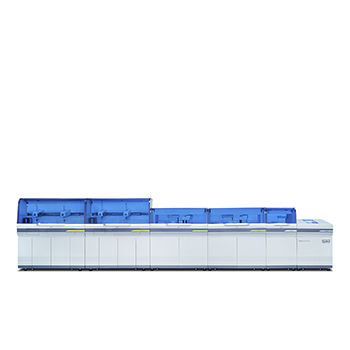

Automatic immunoassay analyzer Biolumi 8000

for clinical diagnosticfloor-standingmodular

Feature： Modular IVD laboratory analytical system combines Immunology, Biochemistry, Electrolyte and Sample handling modules together, full expansion and flexible recombination to satisfy all different requirements in the laboratory. Specification System Modular IVD laboratory analytical system combines Immunology, Biochemistry, Electrolyte and Sample handling modules together, full expansion and flexible recombination to satisfy all different requirements in the laboratory. Sample Processing Module ● Loading 280 samples at one time ● 4 channels, high speed loading ● STAT Channel Electrolyte Module ● 1000 test/hour ● Continuous loading reagent during operation ● Double channels, high speed ● RFID tag for reagent information, Instant recognition Biochemistry Module ● 1600 tests/hour ● 90 reagent positions, continuous loading ● 2 independent paddle stirrers, polished with Nano material, throughly mixing ● Water bath, constant and accurate temperature control: 37℃±0.1℃ ● Holographic Concavity flat field grating, rear spectroscopy technology ● Wavelength range 340nm-800nm, detect 16 wavelengths simultaneously Immunoassay Module ● Non-enzyme involved flash chemiluminescence ● Nano magnetic microbeads for separation ● 280 tests/hour ● 25 reagent positions, continuous loading ● RFID tag for reagent information, Instant recognition ● More than 100 parameters ● 2 point calibration to adjust master curve, maximum calibration stability: 4 weeks
