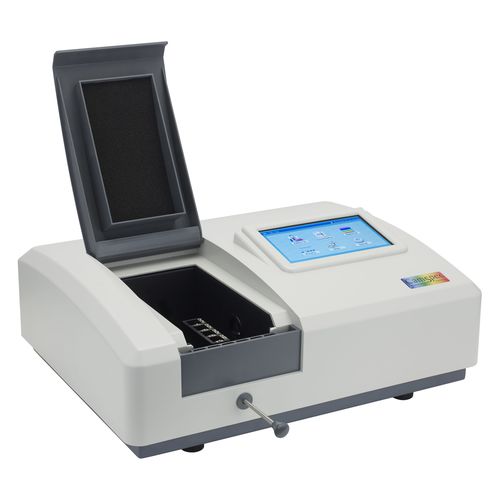

UV-vis spectrometer M509T

for researchtransfersingle-beam

Single beam scanning UV-Vis M509T spectrophotometer with 2nm bandpass designed for research and routine use. Sealed, solvent-resistant colour touchscreen with accessible large icons. Remote control via PC software. USB interface for transfer of results. Large range of accessories for laboratory automation and specific tests. Complies with UKCA and CE requirements for safety and ESD/EMC emission and susceptibility. Calibrated in the UK by qualified engineers using international standards for wavelength, absorbance, resolution and stray light. Operating Modes Basic Mode (Abs, %T, Conc) Quantitative (concentration calibration curves) Wavelength Scanning Kinetics (including timedrive) DNA/Protein Multi-wavelength Performance Validation Software and PC Control Local control with sealed, solvent resistant colour touchscreen Remote control via PC CamSpec K3 Analyst application software Pharmacopoeias The CamSpec M509T passes the following pharmacopoeia tests: Potassium Chloride stray light test Toluene in Hexane resolution test Holmium Perchlorate solution wavelength test Potassium Dichromate absorbance test Technical Specifications Detectors - Silicon Photodiode Stability - ±0.002A/hr@500nm Sample Compartment - Fits 100mm path length cuvette with optional holder Standard Cell Holder - 4 position 10mm cell changer Software - K3 Analyst, optional Zero Drift - <0.003A per hour after warm up Bandpass - 2nm Stray Light - <0.2%T@220nm and 360nm Photometric Accuracy - ±0.5%T Photometric Range - 0-125%T, -0.097-1.999A, 0-1999C (0-1999F)
