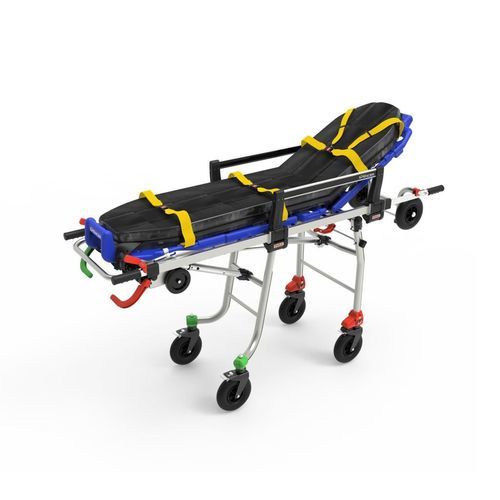

Ambulance stretcher trolley STAR-K ACTIV TS

manualself-loadingTrendelenburg

Overview
The STAR-K ACTIV TS is a multi-level emergency stretcher with extendable/telescopic handles and a load capacity of 260 kg (573 lbs). Designed for confined spaces, it features a shortening frame and four swivel wheels to ease movement and self-loading into ambulances. The stretcher is adjustable to Trendelenburg and Fowler positions. The integrated Twist system allows front-wheel rotation for improved manoeuvrability.

Key features

• High-density polyethylene patient board (blue)
• Adjustable to Trendelenburg and Fowler positions
• Color-coded commands and handles for ambulance loading
• Reclining safety bars
• Shortening frame for confined-space operation
• Twist system enabling front-wheel rotation
• Four pivoting large wheels (Ø 20 cm) for manoeuvrability
• Extendable / retractable telescopic handles
• Adjustable backrest
• Curved legs for patient support

Available models / codes

• ST80030-Z0 - STAR-K ACTIV TS 60
• ST80030-D0 - STAR-K ACTIV TS 60
• ST80031-Z0 - STAR-K ACTIV TS 68
• ST80031-D0 - STAR-K ACTIV TS 68
• ST80032-Z0 - STAR-K ACTIV TS 75
• ST80032-D0 - STAR-K ACTIV TS 75

Included in the product

• Code ST70002 – STX 702 black reflex belts with metal buckle – 2 pcs
• Code ST70000 – QMX777 black PVC heat-sealed mattress (available for codes ST80030-D0, ST80031-D0, ST80032-D0)

Accessories (examples compatible or recommended)

• QMX 777 heat-sealed waterproof mattress
• DNA Straps (re-winding reel system)
• Fixo Kid paediatric restraint system
• Track 4 infusion pole (Spencer Track IV)
• STX 90 telescopic adjustable headrest
• STX 702 restraint belts (two-piece, metal buckle, reflective insert)
• Spencer 570 acrylic blanket
• Spencer 550 nylon quilted blanket
• Roll Up antipilling antibacterial blanket
• Oxypack oxygen cylinder carrier
• End-T instrument support table
• DRX 850 / DRX 550 / DRX 551 disposable TNT accessories

Documents and manuals
Technical datasheets and user manuals for the STAR-K ACTIV TS are available in multiple languages (product brochure and user instructions).

Technical specifications

• Length: 197.5 cm
• Width: 57.5 cm
• Length shortened: 179 cm
• Weight (without accessories): 53 kg
• Height under loading wheels: 60 cm
• Load capacity: 260 kg (573 lbs)
• Frame color: Chrome
• Board color: Blue
