Ambulance stretcher trolley AGILE

manualfoldingTrendelenburg

Overview

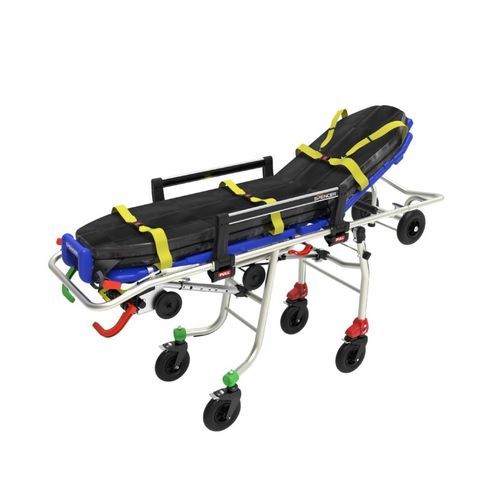

AGILE is a 6-height shortenable multilevel ambulance stretcher with a shortening frame and a load capacity of 260 kg. Available in three model variants (AGILE 60, AGILE 68, AGILE 75) with different loading heights under the trolley, the stretcher is adjustable to Trendelenburg and Fowler positions. Its folding frame and four swivel castors enable use in confined spaces and facilitate maneuvering during loading/unloading. Colour-coded controls and handles support intuitive ambulance loading. The frame is micro-bead treated for increased strength. An assisted lowering system reduces patient discomfort and caregiver strain.

Key features

• 6 variable heights (multi-level adjustment)
• Shortenable/folding frame for use in confined spaces
• Load capacity: 260 kg
• Trendelenburg and Fowler adjustable positions (reclining backrest)
• Colour-coded controls and handles for intuitive ambulance loading
• Micro-bead-treated reinforced frame
• Assisted lowering system to ease transitions between heights
• 4 swivel castors (large flashing wheels, 20 cm diameter) for mobility
• Reclining sides and backrest; ergonomic leg curvature and twist system

Included in the product

• DNA restraint belts (thorax, femur/pelvis, ankles) included in all models
• QMX 777 black heat-sealed PVC mattress (code ST70000) available for specified model codes
• Advancement extension available for specified D1 model codes

Accessories (selected)

• QMX 777 heat-sealed PVC mattress (ST70000)
• DNA straps (re-winding reel)
• Fixo Kid paediatric restraint system
• Track 4 IV pole system
• STX 90 telescopic adjustable headrest
• STX 702 restraint belts
• Spencer 570 acrylic blanket; Spencer 550 nylon quilted blanket
• Roll Up fleece blanket
• Oxypack oxygen tank carrier
• End-T instrument support table
• DRX 850 and DRX 550/551 disposable TNT accessories
• Bariatric Board kit (S-WINGS)

Models / Codes
AG00001-D0 | AGILE 60
AG00001-D1 | AGILE 60
AG00001-Z0 | AGILE 60
AG00002-D0 | AGILE 68
AG00002-D1 | AGILE 68
AG00002-Z0 | AGILE 68
AG00003-D0 | AGILE 75
AG00003-D1 | AGILE 75
AG00003-Z0 | AGILE 75

Technical specifications

• Length: 197.5 cm
• Width: 57.5 cm
• Shortened length: 170 cm
• Weight (without belts and mattress): 56.5 kg
• Loading height under the trolley: 60 cm (varies by model)
• Load capacity: 260 kg
• Wheel diameter: 20 cm
• Frame colour: Chrome
