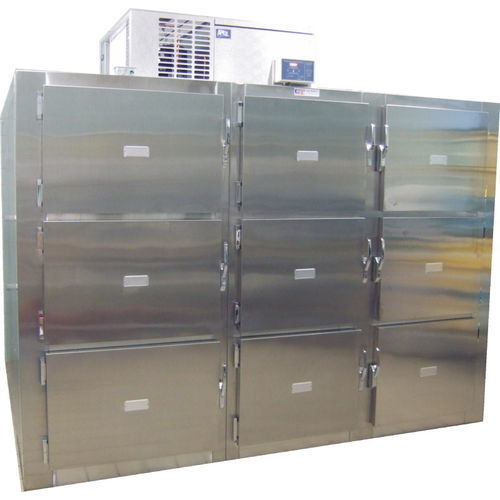

Mortuary stretcher refrigerated mortuary cabinet EC Series

9-bodyfront-loading

MODEL 9EC3W GENERAL SPECIFICATIONS 9 BODY, MORGUE COOLER, END OPENING TEMPERATURE RANGE: 2-6°C (35-42°F) DIMENSIONS - 7-10 1/2" (2400mm) X 8-11" (2718mm) X 8-31/2" (2527mm) EXTERIOR - FRONT: 20 GA. (.91mm) TYPE 304 POLISHED STAINLESS STEEL, #4 FINISH SIDES, BACK, TOP: .032" (.81mm) STUCCO EMBOSSED ALUMINUM INTERIOR - WALLS, CEILING: .032" (.81mm) STUCCO EMBOSSED ALUMINUM DOOR: 20GA (.91mm) TYPE 304 STAINLESS STEEL, #4 FINISH FLOOR: 20GA (.91mm) GALVANIZED STEEL INSULATION - NOMINAL 4" (102mm) FOAMED IN PLACE POLYURETHANE INSULATION DOOR HEATERS - PERIMETER ANTI-SWEAT DEVICE, REPLACEABLE, 115 VOLTS/60 HERTZ/1 PHASE HARDWARE - ADJUSTABLE EDGEMOUNT TYPE, CHROME PLATED; EDGE MOUNTED KEYED LATCH; CARD HOLDER(S) GASKET - EXTRUDED VINYL, WELDED CORNERS, DART STYLE, REPLACEABLE CARRIAGE & FRAME - 3 PIECE, TELESCOPING, GALVANIZED STEEL, ZINC PLATED BALL BEARING ROLLERS REMOVABLE TRAYS - QUANTITY 9, MT1 16 GA. (1.5mm) TYPE 304 POLISHED STAINLESS STEEL 24 1/4" (616mm) X 2 3/4" (70mm) X 791/2" (2019mm) WITH TUBULAR HAND HOLDS CONDENSING UNIT - DROP IN, SELF CONTAINED (TOP MOUNT), INDOOR REFRIGERATION SYSTEM; SYSTEM CAPACITY OF 10,490 BTUH AT 95°F (35°C) AMBIENT TEMPERATURE AND 35°F (2°C) BOX TEMPERATURE; R404A REFRIGERANT; OFF CYCLE DEFROST TIMER; 208-230 VOLTS/ 60 HERTZ/1 PHASE ELECTRICAL, 14.7 UNIT AMPS, PSC TYPE MOTORS ON CONDENSING UNIT WITH EC TYPE MOTORS ON EVAPORATOR; SYSTEM IS FACTORY-ASSEMBLED, EVACUATED, CHARGED, AND RUN TESTED DIGITAL TEMPERATURE READOUT SECTIONAL CONSTRUCTION SHIPPED DISASSEMBLED SHIPPING WEIGHT - 4,965 LB. (2252 KG.) APPROXIMATELY
