Security door Dura-Glide® All Glass 2000/3000

for clean roomsslidingglass

Product overview

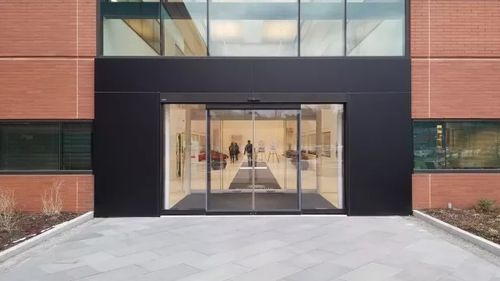

The Dura-Glide® All-Glass Automatic Sliding Door is an architectural sliding system available in bi-part or single slide configurations. It accepts 1/2" (12 mm) tempered glass with polished edges and integrates glass clamp hangers and a pre-assembled header for streamlined installation.

Safety, compliance and locking
This system meets ANSI requirements and is UL listed. Locking options include single-point bottom rail deadlocks and optional electric solenoid locks (Fail Safe / Fail Secure) to support building access control strategies.

Breakout capabilities

• Full Breakout (3000 model): All panels can break out at any travel point to enable large emergency egress.
• Partial Breakout (2000 model): Only sliding panel(s) break out at any travel point. The Dura-Glide 2000 can be installed without a floor track; the 3000 requires a track/threshold.

Performance & durability
Equipped with a high-power motor to reduce mechanical wear, these doors are life-tested to a minimum of 1,000,000 cycles and are engineered to handle high pedestrian traffic while preserving a minimal sight line.

Installation & aesthetics
Pre-assembled header and panel sub-assemblies enable fast, trouble-free installation. All-glass panels and sidelights are designed to blend into building profiles and minimize visible hardware.

Benefits

• Architectural transparency: full-glass panels and sidelights.
• Simplified installation: pre-assembled header and clamp hangers.
• Standards compliant: ANSI and UL listed with multiple locking options.
• High duty performance: motor and life-cycle testing for heavy use.
• Emergency egress options: model-dependent breakout configurations.

Add-ons / accessories

• Security strobe
• Transom systems with variable verticals
• Custom finishes
• Alternative bottom rails
• Thresholds for 3000 model
• Control switches (keyed or non-keyed)
• Uninterruptible power supply (UPS)
• Wind dampers
• Panel closers
• Cleanroom-certified options
• Various glass types

Product FAQs (selected)

• How does this door lock? Typically a mechanical lock keyed from the outside with a thumb-turn inside; when locked the door does not break out. Electronic access control (keypad, card reader, key switch, biometric) can be integrated.
• Which Dura-Glide® doors are trackless? The Dura-Glide 2000 can operate without a floor track; the 3000 requires a track/threshold because all panels break out.
• What stile size options are available? The system is based on narrow and medium stile-and-rail panels; wider stiles will reduce sliding capacity.

Technical specifications

• Model: Dura-Glide® All Glass 2000/3000
• Door type: All-glass automatic sliding door (bi-part or single slide)
• Glass: Accepts 1/2" (12 mm) tempered glass with polished edges
• Breakout: 2000 = partial breakout; 3000 = full breakout
• Track: 2000 = trackless option; 3000 = requires track/threshold
• Compliance: ANSI requirements met; UL listed
• Locking options: Single-point bottom rail deadlocks; optional electric solenoid lock (Fail Safe / Fail Secure)
• Installation: Pre-assembled header; integrated glass clamp hangers; panel sub-assemblies
• Durability: Life tested to ≥1,000,000 cycles
• Motor: High-horsepower motor for reduced wear
• Available accessories: Security strobe; transom variations; custom finishes; alternative bottom rails; thresholds (3000); control switches; UPS; wind dampers; panel closers; cleanroom options; various glass types
