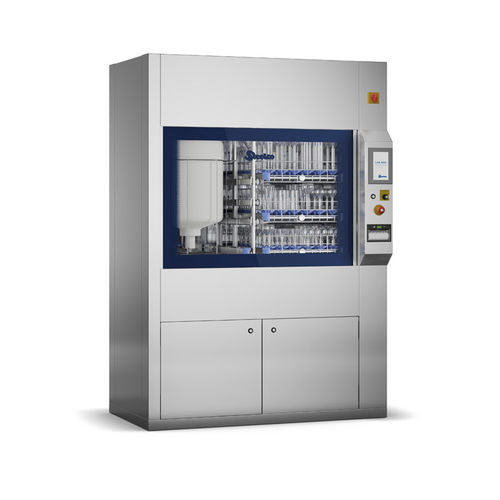

Automatic glassware washer LAB 1500

laboratorywaterspray

The LAB 1500 is a high-capacity glassware washer and dryer specially developed for laboratories that require to clean large quantities of items on a daily basis. This lab washer features a full-visibility, motorized, space-saving, sliding-down door. Two heavy duty washing pumps dedicated to separate washing – providing a high water-flow rate combined with adequate spray pressure – ensure outstanding glassware washing results. The availability of an optional pre-heated tank allows to perform a final non-recirculated rinse. This unit is capable of injection washing on up to 6 levels with 8 possible rack locations, providing maximum flexibility through multiple chamber configurations depending on the height of the loaded items. All the levels are equipped with telescopic bearing rails that enable easy and safe loading and unloading of the glassware. The upper levels can be removed depending on the height of the loaded glassware. As standard, two peristaltic pumps provide precise dosing of liquid chemicals. A convenient hinged door allows for easy access to storage of up to two 10-liter / 2.64-gal chemical tanks. The optional filtered-forced-air drying system with adjustable time and temperature settings helps to ensure the complete inside and outside drying of all the glassware. To assure full control of the process, the device is controlled by a PLC digital controller with a user-friendly color touch-screen HMI. With a chamber volume of about 484 l / 19.95 cu ft, this device has the highest chamber-to-footprint capacity ratio in the market.
