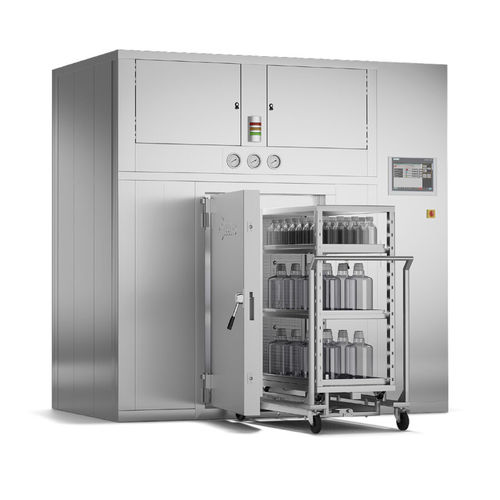

Laboratory sterilizer SD

for the pharmaceutical industryhot airpass-through

The SD Series supports depyrogenation in aseptic processes, using controlled hot, dry air to reduce endotoxin levels under Class 100 / ISO Class 5 conditions. Airflow and temperature control are designed for uniform results across different load sizes, with contamination-control features to protect product and process. Typical loads Suitable for sterilization or depyrogenation of a wide range of items, including: Moisture sensitive materials resistant to heat Vials, bottles, vials, laboratory glassware Metal trays and instruments, Thermostable basic products Chemical compounds Non-aqueous liquid materials such as oils, glycerin Electrical heating elements with top-mounted recirculation fans for uniform chamber temperature Pre-filters and HEPA filtration on inlet, exhaust, and chamber-side recirculation to help prevent cross-contamination Differential pressure monitoring and DOP-testable filter housings Controlled air cooling via a heat exchanger using chilled or softened water Sanitary GMP construction Built for sanitary application in regulated environments: fully drainable designs, non-retentive surfaces and 316L stainless steel with a smooth finish. Welds are ground flush and fabrication can be documented in a complete logbook. Process-contact materials with EN 10204 traceability and USP Class VI compliant elastomers. Features Filtration system The filtration system is designed to keep particle levels low in the chamber throughout the cycle and meet pharmaceutical requirements. The filter housing minimizes thermal bridge points and mechanical stress.
