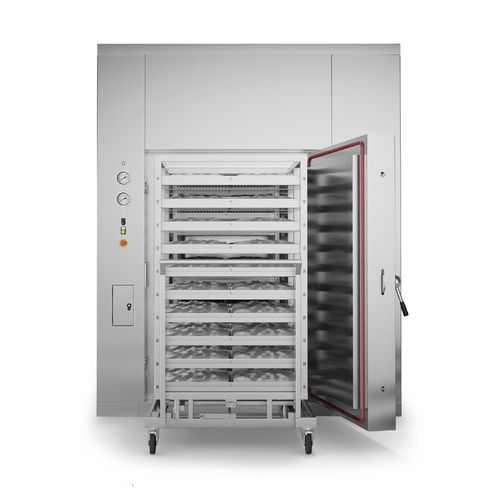

Heating oven EG

dryingfor the pharmaceutical industrylaboratory

The EG Series is a hot-air drying oven for porous pharmaceutical loads such as granulates, pellets and powders as well as glassware and equipment components. Recirculated, HEPA-filtered airflow and controlled temperature ramps support uniform, gentle drying and consistent GMP performance. A CIP option for the chamber and air ducts helps streamline cleaning between batches. Typical loads Suitable for drying parts or porous loads used in pharmaceutical processes, including: Machine parts Glassware Granulates Pellets Powders Electrical heating elements and top-mounted air recirculation fans support uniform temperature distribution throughout the chamber. Inlet and exhaust ducts with pre-filters and HEPA filtration help prevent cross-contamination. Differential pressure transmitters continuously monitor chamber pressure and filter performance. HEPA filter housings include fittings required for DOP integrity testing. Controlled air cooling via a heat exchanger using chilled or softened water Built for sanitary application in regulated environments: fully drainable designs, non-retentive surfaces and 316L stainless steel with a smooth finish. Welds are ground flush and fabrication can be documented in a complete logbook. Process-contact materials with EN 10204 traceability and USP Class VI compliant elastomers.
