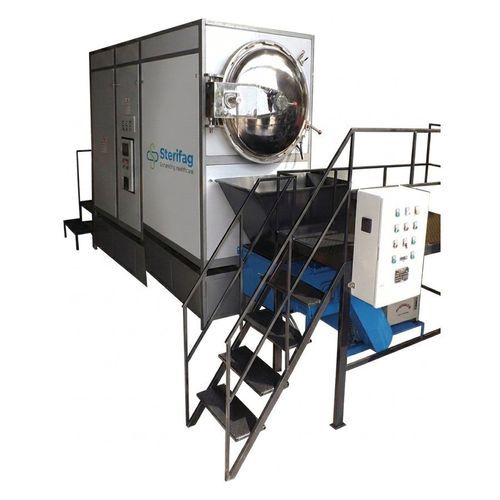

Medical waste autoclave SF-BMW series

front-loadingfloor-standingmicroprocessor-controlled

Overview
Post-shredder sterilization system with a 1000 litre chamber, 45-minute cycle and stainless steel construction. Waste is sterilized first, then shredded. The SF-BMW-1000 completes a cycle in 45 minutes, drawing 25 A at 380 V.

How it works
In a post-shredder system the waste is loaded into the sterilizer first. The pre-vacuum stage runs, then sterilization; steam and water are discharged at the end of the cycle. The discharge door then opens and the sterilized waste transfers to the shredder, where crushing begins. Shredding after sterilization means the shredder only handles material that has already been rendered safe and reduces jams and wear on the sterilization stage.

Key product table
Model code: SF-BMW-1000
Capacity: 1000 Litre
Category: Biomedical waste
Brand: Sterifag
Lead time: 30-60 days
Warranty: 1 year standard

Advantages

• One year guarantee, with ten years of after-sales service.
• No RO water purification system required.
• Low power consumption.
• No autoclave plastic needed, thanks to the non-stick internal layer.
• Body and connections in stainless steel.
• Pneumatic and manual doors fitted.
• High-precision pressure and temperature controller.

Full range (summary)
SF-BMW-300 — 300 L — 100*115*210 cm — 20 A — 150 kg/h — 35 min
SF-BMW-500 — 500 L — 180*115*210 cm — 20 A — 200 kg/h — 40 min
SF-BMW-600 — 600 L — 180*115*210 cm — 20 A — 200 kg/h — 40 min
SF-BMW-800 — 800 L — 185*115*210 cm — 20 A — 200 kg/h — 45 min
SF-BMW-1000 — 1000 L — 140*145*240 cm — 25 A — 250 kg/h — 45 min
SF-BMW-1800 — 1800 L — 270*145*240 cm — 25 A — 250 kg/h — 50 min
SF-BMW-2200 — 2200 L — 300*145*238 cm — 25 A — 300 kg/h — 55 min

Technical specifications

• Model code: SF-BMW-1000
• Chamber capacity: 1000 litres
• Dimensions (L×W×H): 140*145*240 cm
• Cycle time: 45 minutes
• Power consumption: 25 A (operates at 380 V)
• Input voltage: 380 V
• Water consumption: 5 litres per batch (all models except SF-BMW-2200)
• Steam consumption: 250 kg/h
• Air requirement: 100 litre air compressor
• Category: Biomedical waste
• Brand: Sterifag
• Lead time: 30-60 days
• Warranty: 1 year standard
