Hospital waste treatment system

for healthcare facilitieslaboratorymanual

Overview

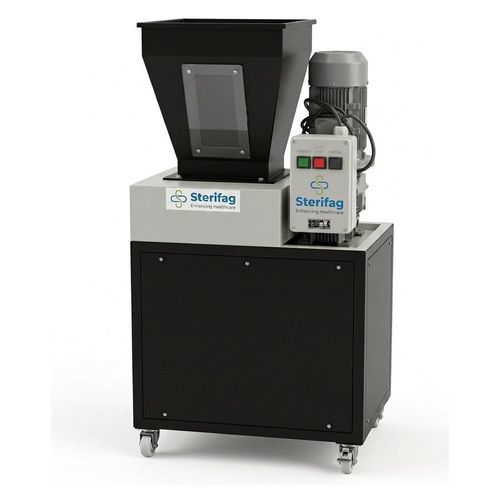

Double-shaft shredder for controlled size reduction of treated biomedical waste. Designed for post-treatment shredding (autoclave, microwave or hydroclave) so cutters and maintenance personnel only handle rendered-safe material. Caster-mounted with a sliding collection arrangement to minimise spread during trolley removal. Capacity: 30 kg/hr (standard); higher-capacity configurations available.

Product data
Model code: SF-BMW-SHR-30
Capacity: 30 kg/hr
Category: Bio Medical Waste
Brand: Sterifag
Lead time: 30-60 days
Warranty: 1 year standard

Technical specifications
Parameter — Specification — Status
Capacity — 30 kg/hr or more — Standard
Motor — 3-phase induction motor, minimum 4 HP; 50 kg/hr configuration available — Configurable
Speed — Low RPM (preferably 30–40 RPM) — Standard
Shaft — Double shaft — Standard
Drive — Gear / geared drive — Standard
Cutter — Non-corrosive hardened alloy steel — Configurable
Outer body — Mild steel, approx. 5 mm thickness — Configurable
Feeding — Manual, through hopper — Standard
Electrical load — ≤ 3 kW, subject to final configuration — Configurable
Waste compatibility — Treated wet biomedical waste (after autoclave, microwave or hydroclave) — By design
Waste platform — MS structure, minimum 3 ft height where specified — Configurable
Control panel — Pre-wired and powder coated — Standard
Sliding system — Fitted to reduce waste spreading during trolley removal — Standard

Safety and protection
Interlocking limit switch — Stops the shredder when the hopper or access door is opened.
Reverse motion — Clears overload or jamming conditions.
Motor overload protection — Protects the drive against excessive load.
Emergency stop — Rapid operator shutdown.
Scattering protection — Enclosed cutting chamber with controlled discharge.
Shock-loading protection — Automatic stopping for abnormal or non-shreddable material.
Electrical protection — MCB or suitable resettable overcurrent protection can be incorporated.

Construction
Hopper and chamber — Controlled feeding with an enclosed cutting arrangement.
Drive system — Geared low-RPM transmission for positive gripping and cutting.
Control panel — Local controls with emergency-stop provision; pre-wired and powder coated.
Mobility — Caster-mounted for positioning and service access; sliding trolley arrangement for reduced spread.

Where it is used

• Hospitals and healthcare facilities
• Biomedical waste treatment facilities
• Laboratories
• Authorised waste-processing installations

Commonly installed alongside a post-shredder autoclave so treatment and size reduction run as one integrated process.

Technical features

• Capacity: 30 kg/hr or more
• Motor: 3-phase induction motor, minimum 4 HP (50 kg/hr configuration available)
• Speed: Low RPM (preferably 30–40 RPM)
• Shaft: Double shaft
• Drive: Gear / geared drive
• Cutter: Non-corrosive hardened alloy steel
• Outer body: Mild steel, approx. 5 mm thickness
• Feeding: Manual, through hopper
• Electrical load: ≤ 3 kW (subject to configuration)
• Waste compatibility: Treated wet biomedical waste (after autoclave, microwave or hydroclave)
• Waste platform: MS structure, minimum 3 ft height where specified
• Control panel: Pre-wired and powder coated
• Sliding system: Fitted to reduce waste spreading during trolley removal
• Mobility: Caster-mounted for positioning and service access
• Lead time: 30-60 days
• Warranty: 1 year standard
