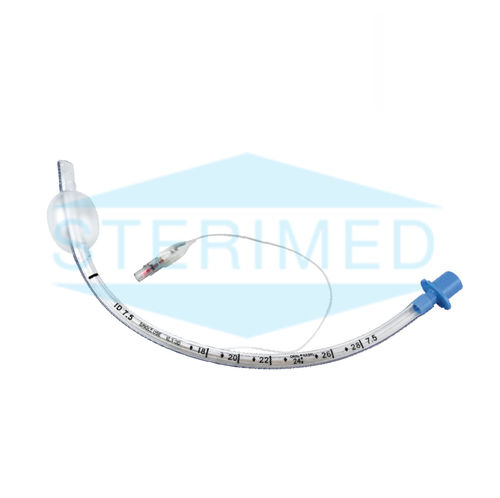

Oral endotracheal tube SMD 701 series

infant25 per boxdisposable

Product Overview
Sterimed’s Endotracheal Tube SMD 701 (cuffed and plain versions) is intended for airway management and mechanical ventilation in critical and perioperative care. Designed for atraumatic insertion and reliable sealing, the tube supports safe intubation, suctioning and secure connection to ventilation systems.

Key Features & Benefits

• Trachseal Balloon Technology: Low-pressure, high-volume cuff ensures effective tracheal seal and reduces risk of aspiration.
• Elastosyl Coating: Silicone elastomer coating reduces friction (~80%) to minimize mucosal trauma during insertion and removal.
• 100% Phthalate-Free and Bio-Compatible: Medical-grade, non-toxic PVC construction suitable for clinical use.
• Patient Comfort: Material softens at body temperature; smooth internal and external surfaces facilitate suctioning and extubation.
• Enhanced Safety: Thin-walled, kink-resistant design with polished Murphy eye for reliable airflow and reduced occlusion risk.
• Ease of Use: Radio-opaque line for radiographic position identification and universal 15 mm connector for ventilator compatibility.
• Sterile and Single-Use: E.T.O. sterilized and pyrogen-free; supplied sterile for single-patient use.

Packaging

• Sterile, individually packed in peelable pouch.
• Box of 25; Master Carton of 200/400.

Gross weights and carton dimensions
Gross: 6.5 kg (400 pcs)
Gross: 6.3 kg (200 pcs)
Gross: 8.6 kg (200 pcs)
Carton sizes:
540 x 500 x 350 mm (2.0 to 4.0 mm)
660 x 320 x 380 mm (4.5 to 6.0 mm)
660 x 380 x 420 mm (6.5 to 10.0 mm)

Sizes – Cuffed
2.5 mm, 3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0 mm, 5.5 mm, 6.0 mm, 6.5 mm, 7.0 mm, 7.5 mm, 8.0 mm, 8.5 mm, 9.0 mm, 9.5 mm, 10 mm

Sizes – Plain
2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0 mm, 5.5 mm, 6.0 mm, 6.5 mm, 7.0 mm, 7.5 mm, 8.0 mm, 8.5 mm, 9.0 mm, 9.5 mm, 10 mm

Technical specifications

• Model designation: SMD 701 C (cuffed) and SMD 701 P (plain).
• Material: Medical-grade, non-toxic PVC with silicone elastomer / Elastosyl coating.
• Phthalate-free: 100% phthalate-free and bio-compatible construction.
• Cuff: Trachseal balloon cuff (low-pressure, high-volume) for tracheal seal and aspiration prevention.
• Design: Thin-walled, kink-resistant tube design.
• Friction reduction: Elastosyl coating reduces friction (~80%) to minimize tissue trauma.
• Radiopacity: Radio-opaque line for radiographic position identification.
• Murphy eye: Polished Murphy eye.
• Connector: Universal 15 mm connector compatible with standard ventilation devices.
• Sterilization: E.T.O. sterilized; pyrogen-free; single-use only.
• Presentations: Available cuffed and plain; multiple sizes from 2.0 mm to 10 mm.
