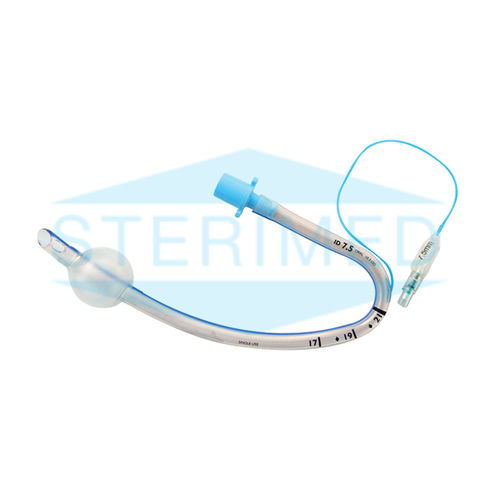

Oral and nasal endotracheal tube SMD series
25 per boxdisposable

Oral and nasal endotracheal tube - SMD series - SteriMed Medical Devices - 25 per box / disposable
Oral and nasal endotracheal tube - SMD series - SteriMed Medical Devices - 25 per box / disposable
Oral and nasal endotracheal tube - SMD series - SteriMed Medical Devices - 25 per box / disposable - image - 2
Oral and nasal endotracheal tube - SMD series - SteriMed Medical Devices - 25 per box / disposable - image - 3
Oral and nasal endotracheal tube - SMD series - SteriMed Medical Devices - 25 per box / disposable - image - 4
Add to favorites
Compare this product

Characteristics

Intubation method
oral and nasal
Number per box
25 per box
Options
disposable
External diameter (mm)

4.2 mm, 4.8 mm, 5.5 mm, 6.2 mm, 6.9 mm, 7.6 mm, 8.2 mm, 8.9 mm, 9.6 mm, 10.3 mm, 10.9 mm
(0.2 in, 0.2 in, 0.2 in, 0.2 in, 0.3 in, 0.3 in, 0.3 in, 0.4 in, 0.4 in, 0.4 in, 0.4 in)

Inner diameter (mm)

3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm, 6.5 mm, 7 mm, 7.5 mm, 8 mm
(0.1 in, 0.1 in, 0.2 in, 0.2 in, 0.2 in, 0.2 in, 0.2 in, 0.3 in, 0.3 in, 0.3 in, 0.3 in)

Description

Variants / References
  • South Oral & North Nasal
  • Endotracheal Tube North Nasal Ivory Cuffed | SMD 754
  • Endotracheal Tube North Nasal Cuffed | SMD 717 C
  • Endotracheal Tube North Nasal Plain | SMD 717
  • Endotracheal Tube South Oral Cuffed | SMD 718 S & SMD 717
  • Endotracheal Tube South Oral Plain | SMD 718 S & SMD 717


Product description
  • Maintains a patent airway and enables mechanical ventilation in clinical and surgical settings
  • Manufactured from medical-grade PVC that is non-toxic and non-irritant
  • Preformed shape reduces kinking and improves access to the operative field
  • Tube may be temporarily straightened to facilitate suctioning
  • Smooth polished Murphy eye and tapered distal/balloon end to reduce trauma during intubation and extubation
  • Graduation marks and tip-to-tip radiopaque line for accurate positioning under imaging
  • Cuffed variants feature a high-volume, low-pressure cuff for an effective low-pressure seal
  • Universal 15 mm proximal connector compatible with standard breathing circuits
  • ETO sterilized and pyrogen-free; intended for single patient use


Packaging
  • Individually packed in blister pack
  • Inner Box: 25 pcs
  • Master Carton: 200 pcs


Packaging details / Gross weight & box dimensions (per packaging option)
Gross: 4.2kg / 6.2kg / 8.5kg
Box dimensions: 470 x 240 x 350mm
670 x 310 x 385mm
670 x 375 x 425mm

Sizes
SIZES – ORAL & NASAL
ID (mm): 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 5.5 | 6.0 | 6.5 | 7.0 | 7.5 | 8.0
O.D. (mm): 4.2 | 4.8 | 5.5 | 6.2 | 6.9 | 7.6 | 8.2 | 8.9 | 9.6 | 10.3 | 10.9

360° product media
Embedded 360° / video demonstration available.

Technical specifications
  • Intended use: maintain a patent airway and enable mechanical ventilation
  • Material: medical-grade PVC, non-toxic, non-irritant
  • Design: preformed to reduce kinking and improve operative access; can be temporarily straightened for suctioning
  • End features: smooth polished Murphy eye and tapered balloon end for atraumatic intubation/extubation
  • Positioning aids: graduation marks and tip-to-tip radiopaque line
  • Cuff (cuffed variants): high-volume/low-pressure cuff design for efficient seal
  • Connector: universal 15 mm proximal connector
  • Sterilization & safety: E.T.O sterile, pyrogen-free; single patient use
  • Available sizes: ID and corresponding O.D. as listed in Sizes section
  • Packaging: individual blister packs; inner box of 25; master carton of 200; gross weights and carton dimensions provided
