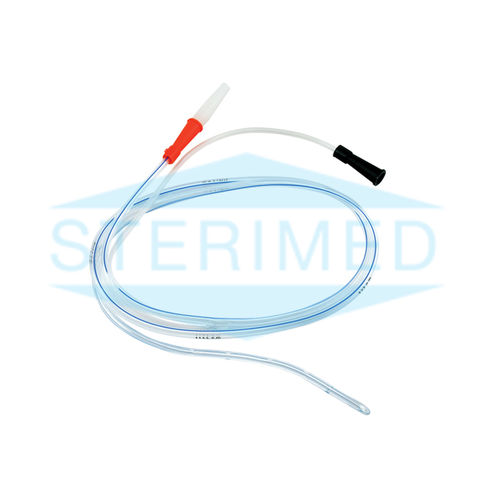

PVC gastroduodenal tube SMD 600

graduated

Product
Gastro duodenal Salem Sump irrigation tube
Model: SMD 600

Key features

• Prevents accumulation of gastric secretions and air
• Manufactured from non-toxic medical grade PVC
• Double lumen along full length providing continuous air venting when stomach contents are evacuated
• Coned distal end with ten lateral eyes for efficient drainage
• Universal funnel connector and double taper connector at proximal end for easy extension
• Depth markings at 45, 55, 65 and 75 cm and radio-opaque line for accurate placement

Packaging

• Sterile, individually packed in peelable pouch
• Box of 50; Master Carton of 500 (6 to 14 FG)
• Box of 50; Master Carton of 600 (16 to 20 FG)

Packing details
Gross: 16.5 kg (14 FG)
6 to 14 FG – 790 x 480 x 280 mm
16 to 20 FG – 680 x 480 x 520 mm

Sizes / Dimensions
EFFECTIVE LENGTH: 122 cm
TOTAL LENGTH: 125 cm

FG sizes and colour codes
FG: 06 • 08 • 10 • 12 • 14 • 16 • 18 • 20
Colour Code: 06 - Green, 08 - Blue, 10 - Black, 12 - White, 14 - Green, 16 - Orange, 18 - Red, 20 - Yellow

Multimedia
360° video available

Technical specifications

• Intended use: prevent accumulation of gastric secretions and air
• Material: non-toxic medical grade PVC
• Construction: double lumen throughout length providing continuous air vent
• Distal design: coned distal end with ten lateral eyes for efficient drainage
• Proximal connectors: universal funnel connector and double taper connector for extension and compatibility with accessories
• Markings: depth markers at 45, 55, 65 and 75 cm
• Imaging aid: radio-opaque line for accurate radiographic placement
• Effective length: 122 cm; Total length: 125 cm
• Available sizes: FG 06 to FG 20 with defined colour coding
• Packaging: sterile, individually peelable pouches; box and master carton configurations by FG range
• Gross weight example: 16.5 kg (for 14 FG master carton)
