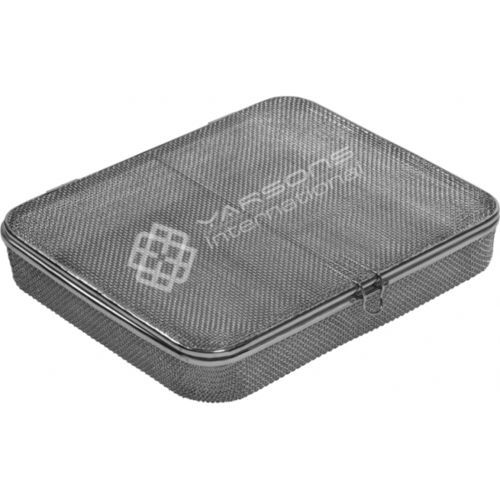

Surgical instrument sterilization container YMM-9105

for instrumentsautoclavablewire

Product name
Micro Mesh Tray

Description / Uses
Wire mesh trays are designed for organization, cleaning, transport and sterilization of surgical instruments and small medical components in healthcare facilities. They enable the formation of customized instrument sets with stainless steel or silicone dividers and holders and are compatible with washer-disinfectors and autoclaves. Trays can be used wrapped in textile for sterilization when required.

Features

• Holds a variety of instruments including small parts that are difficult to track during washing, sterilization, transport and storage
• Available in multiple sizes to accommodate only small items or larger instruments with their components
• Open mesh design provides maximum surface exposure for washing and sterilization processes
• Options for fixed or detachable lids and locks
• Suitable for use in sterile environments
• Stainless steel construction resists steam, mechanical washing, autoclave cycles, heat and chemical sterilization
• Optional protection strip capping available
• Can be fitted with RFID identification tags for content tracking
• Wide range of accessories available

Sizes
YMM-6500 | 470 x 250 x 20 mm
YMM-6900 | 500 x 400 x 50 mm
YMM-7300 | 400 x 250 x 50 mm
YMM-8001 | 380 x 250 x 50 mm
YMM-8901 | 410 x 260 x 110 mm
YMM-9105 | 300 x 250 x 50 mm
YMM-9301 | 400 x 200 x 50 mm

Mesh Details

• Mesh type: Woven
• Mesh size: 2 x 2 mm
• Mesh wire: 0.71 mm (22 SWG)

Material & Finish

• Material: 304 (ASTM) stainless steel
• Surface finish: Mirror, luster, satin, brushed and colored options
• Cutting method: Laser cut
• Stackable: All trays are stackable

Technical specifications

• Model: YMM-9105
• Dimensions (YMM-9105): 300 x 250 x 50 mm
• Material: 304 (ASTM) stainless steel
• Mesh: Woven, 2 x 2 mm, wire 0.71 mm (22 SWG)
• Finish options: Mirror, luster, satin, brushed, colored
• Cutting method: Laser cut
• Stackable: Yes
• Optional accessories: lids (fixed/detachable), locks, protection strip capping, RFID tags
