Instrument sterilization tray YMM-56 series

for surgical instrumentsfor consumablesautoclavable

Product

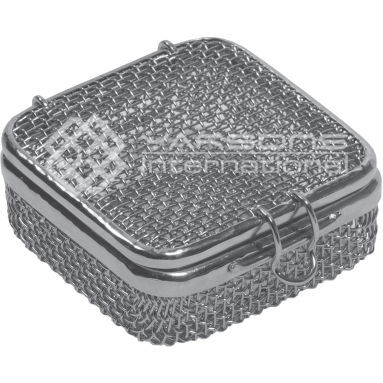

Micro mesh tray YMM-5650 designed for handling, cleaning and sterilization of small medical instruments.

Overview
Wire mesh trays provide controlled containment and maximum exposure during washing and sterilization processes. They are used in hospitals and sterile processing departments to form surgical sets, transport consumables and store instruments between procedures. Trays accept dividers and holders to organize instruments and minimize handling errors.

Applications

• Formation and transport of surgical instrument sets
• Machine washing and autoclave sterilization
• Instrument organization and storage in sterile environments

Key features

• Mesh design ensures thorough circulation of water, steam and sterilizing agents for effective cleaning and sterilization
• Available in multiple sizes to accommodate small parts and assembled instruments
• Options for fixed or removable lids with optional locking mechanisms
• Stainless steel construction compatible with steam, autoclave, machine washing, heat and chemical sterilization
• Low contact surfaces to maximize sterilant exposure
• Optional protection strip capping and RFID tag integration for traceability
• Compatible with silicone or stainless steel dividers and instrument holders

Sizes
YMM-5650 | 160 x 40 x 20 mm
YMM-5655 | 200 x 40 x 40 mm
YMM-5656 | 200 x 60 x 40 mm

Technical specifications

• Model / reference examples: YMM-5650, YMM-5655, YMM-5656
• Dimensions examples: 160 x 40 x 20 mm (YMM-5650); 200 x 40 x 40 mm (YMM-5655); 200 x 60 x 40 mm (YMM-5656)
• Construction: stainless steel suitable for steam, autoclave, machine washing, heat and chemical sterilization
• Lid options: fixed or detachable lids; optional locks
• Accessories: silicone or stainless steel dividers and holders; protection strip capping; RFID tag option
• Surface finishes available: mirror, luster, satin, brushed, colored
• Manufacturing: laser cut
• Stackability: all trays are stackable
