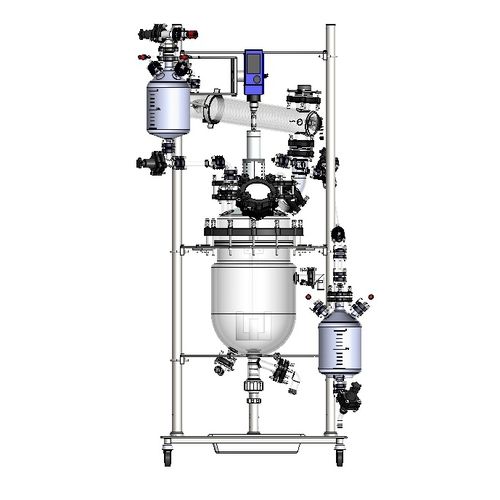

Laboratory reactor SQHK078027

for the pharmaceutical industryborosilicate glass

Steroglass jacketed Pharma Reactors are designed for pharmaceutical use and are FDA compliant, guaranteeing total safety because they do not leave any residue or stagnant liquid. The structure and the industrial stirring system with ultra GMP valve are designed to work in absolute safety. Benefits GMP COMPLIANT The system has been designed according to GMP standards TOTAL SAFETY No residues or stagnant liquids FOR PHARMACEUTICAL USE FDA compliant (PTFE and borosilicate glass in contact with products) MULTIPURPOSE Ideal for dissolving, mixing corrosive liquids and / or solids, crystallization reactions, polymerization reactions and other applications 3.3 BOROSILICATE GLASS The system is made in 3.3 borosilicate glass COMPACT DESIGN It can be placed under walk-in hoods (up to 20L version) Technical features WORKING CONDITIONS Design Temperature : -50 °C / 2000 °C Delta Temperature : 80 °C Design Pressure : -1mbar / 0,5 barg Max vacuum: 5mbar Abs REACTION GROUP DN300 Jacketed vessel; 10L, 20L and 30L nominal capacity; DN300 Glass lid 7 necks: a) DN25 Central for stirring; b) DN80 with closure for solid loading; c) DN25 for liquid inlet; d) DN50 for vapour line; e) DN40 closed and free (on request); f) DN40 closed and free (on request); g) DN40 closed and free (on request); AISI304 Stirring shaft, PTFE-coated; PTFE Stirring anchor blade; PTFE/glass mechanical seal - ATSA25/16; 25mm discharge bottom valve, Gmp compliant. POWER SUPPLY: ELECTRICAL MOTOR 140Watt, approx. 230V or COMPRESSED AIR MOTOR air worn out 260 l/min at 6bar
