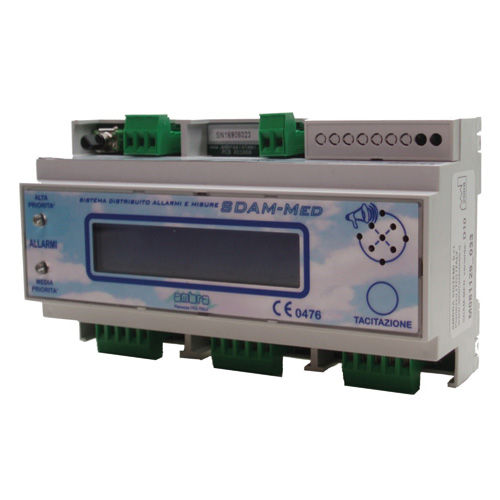

Area medical alert system SDAM-MED A5

for medical gas

ALARM UNIT FOR 4/20 MA ANALOG TRANSDUCERS SDAM-MED A5 support the following functions: •No.5 analog inputs for 4/20 mA analog transducers; •Values in standard units, with associated ID and unit specification; •Low and high alarm set-points for each inputs; •Classification as information, medium priority or high priority alarm for each inputs; •Display with 2 lines x 20 characters with LED backlight; •Yellow and red alarm lights associated to medium and high priority alarm status; •Alarm recovery time adjustable from 1 to 15 minutes; •Auxiliary output switches for external cumulative alarm indicators or hooters; •Proprietary network protocol SDAMNET; •Programming by Windows software application SDAM Programming Tool; •Optical and acoustic indications about alarm status in accordance with European standard ISO7396-1 and EN 60601-1-8 ALARM UNIT FOR PRESSURE SWITCHES WITH 10 DIGITAL INPUTS SDAM-MED D10 support the following functions : •No.10 digital inputs for pressure switches and vacuum switches; •Alarm and status indication with associated ID; •Classification as information, medium priority or high priority alarm for each inputs; •Display with 2 lines x 20 characters with LED backlight; •Yellow and red alarm lights associated to medium and high priority alarm status; •Alarm recovery time adjustable from 1 to 15 minutes; •Auxiliary output switches for external cumulative alarm indicators or hooters; •Proprietary SDAMNET network and protocol; •Programming by Windows software application SDAM Programming Tool; •Optical and acoustic indication about alarm status in accordance with European standard ISO 7396-1 and EN 60601-1-8.
