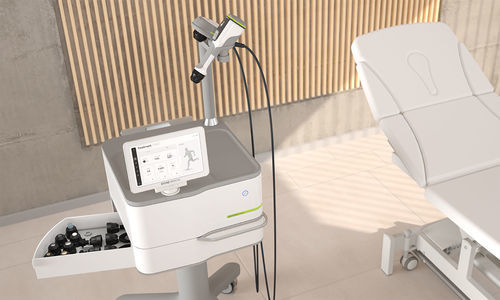

Musculoskeletal disorder ESWT unit MASTERPULS® icon

trolley-mounted

Product overview
The MASTERPULS® icon is a premium radial shock wave therapy device (Deep R-SW) featuring HF Burst Mode, increased treatment depth and integrated vibration therapy (V-ACTOR®) designed for regenerative pain therapy, myofascial applications and to close the therapeutic gap between conventional radial ESWT and focused ESWT.

Workstation & user experience
The MASTERPULS® icon is designed for ease of handling and efficient workflow: intuitive user interface, light-signature in the handpiece to indicate applied intensity by colour, two drawers for organisation and a cable guard on the wheel for safe manoeuvring.

Technical features (summary)

• Intensity: 0.1 – 5 bar (device)
• Frequency: 1 – 27 Hz (standard); HF Burst Mode: 50 Hz
• V-ACTOR HS vibration therapy: 1 – 100 Hz

The Endurance handpiece
The Endurance handpiece is developed for lifespan, performance and ergonomics: multiple holding positions with emphasis on the power grip; vibration absorption for user comfort; designed weight distribution for hand control during intensive application; coloured illumination provides visual feedback of intensity; patented double-valve technology enables precise control of shock wave energy for accurate, reproducible treatments.

HF Burst Mode
HF Burst Mode is a high-frequency, high-energy burst sequence (50 Hz) developed for intensive treatments requiring deep-tissue action. Key application areas include intensive treatment of muscle trigger points and fascia in athletes, shortened treatments for pain-sensitive patients, muscle stiffening due to overstrain or stress, and deep trigger/acupuncture points.

Deep R-SW & extended intensity
The MASTERPULS® icon provides enhanced deep-tissue action (Deep R-SW) and an extended intensity range (performance +30%) via the Endurance handpiece, enabling treatment of deeper tissue zones such as myotendinous junctions and scar tissue and closing the gap toward focused shock wave therapy.

Transmitters & accessories
Individual transmitters are used for treatment safety and adaptability: radial transmitters for standard indications; PERI-ACTOR transmitters specifically adapted for fascia therapy (Swart/Di Maio shapes and materials); SPINE-ACTOR transmitters (Double Tip) for paravertebral and spinal musculature. Features include automatic transmitter recognition via integrated RFID and a Quick-Lock mechanism for fast transmitter changes.

V-ACTOR HS high-speed handpiece (1–100 Hz)
The V-ACTOR HS supports vibration therapy up to 100 Hz to promote resonance vibrations, microcirculation and deep massage effect. Frequency ranges and intended effects:

• Low frequencies (1 – 35 Hz): relax and activate neuromuscular system and local metabolism
• Medium frequencies (36 – 50 Hz): may trigger tonic vibration reflex, useful for tone reduction (spasticity, tense tissue)
• High frequencies (51 – 100 Hz): can override pain signals and provide stronger deep-tissue sensory stimulation

User interface & documentation
Clear, easy-read user interface displays intensity, pulse rate and frequency; countdown and treatment timer; patient history stores all treatment reports; an indication library provides recommended protocols for 18 indications. The treatment report documents which transmitter was used, average parameters, total and active treatment time and VAS pain development across sessions to support documentation and observational studies.

Application range & patient benefits
The device covers a broad range of radial shock wave therapy indications: muscle tension, tendinopathies, spasticity, back and cervical pain, sports injuries and overstrain, tendon inflammations (shoulder, Achilles, patellar), heel spur and plantar fasciitis, and muscle stiffness. Patient advantages include shorter treatment times with HF Burst, reduced discomfort through individual adaptation, deeper action to reach stubborn trigger points, and supportive vibration therapy to improve circulation and reduce pain.

Design & manufacturing
Developed and hand-made in Switzerland. The product combines high-tech manufacturing and hand assembly to provide long service life, reliability and precision.

Technical specifications

• Model name: MASTERPULS icon
• Intensity (radial shock wave): 0.1 – 5 bar
• Standard frequency range (R-SW): 1 – 27 Hz
• HF Burst Mode: 50 Hz (high-frequency burst)
• V-ACTOR HS vibration therapy: 1 – 100 Hz
• Endurance handpiece: patented double-valve technology for precise energy control
• Deep R-SW: extended deep-tissue action, intensity range extended by ~30%
• Transmitters: radial transmitters, PERI-ACTOR (fascia), SPINE-ACTOR (spinal) with RFID automatic recognition
• Quick-Lock mechanism for rapid transmitter changes
• Handpiece visual feedback: coloured illumination to indicate intensity
• User interface: intuitive parameter setting, countdown/timer, patient history, indication library (18 indications)
• Treatment report: records transmitter used, average parameters, total/active treatment time, VAS pain progression
• Workstation features: drawers for organisation, cable guard, ergonomic design
• Manufacture: developed and hand-made in Switzerland
