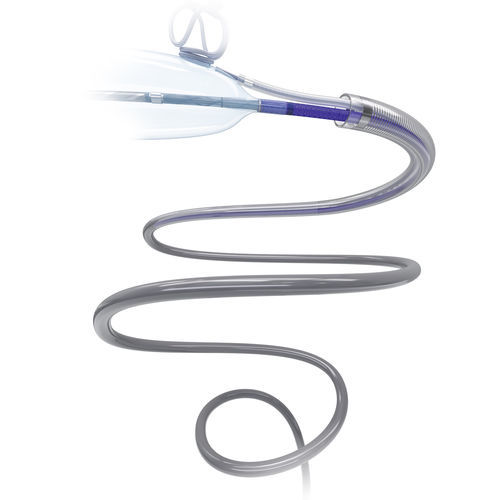

Guiding catheter AXS Lift™

neurovascularatraumatic tip7 FR

Overview
Streamlined access to the treatment site can enable faster therapy and may help prevent complications. The AXS Lift™ Intracranial Base Catheter is designed to combine the procedural simplicity of a biaxial setup with the support of a triaxial system.

Features and benefits

• Streamlined setup
• Reduces time from puncture to the cavernous segment by 29%
• Fewer catheters, fewer manipulations

Extensive capabilities
With a large 0.074" ID, the AXS Lift™ provides capacity for multiple treatment techniques while delivering the support required for a range of therapeutic devices through a low-profile 7Fr catheter.

• Intracranial access broadly compatible for interventions
• Parallel or sequential microcatheter use

Specifications / Technical details

• Atraumatic tip — optimized for distal navigation
• Low-profile outer diameter: 7Fr compatible (0.097 in OD) to minimize puncture size
• Large inner diameter: 0.074" ID — seamless compatibility with parallel techniques
• Distal 15 cm construction featuring nitinol round wire coils and ultra-soft polymers — highly trackable and supportive intracranially
• Proximal construction featuring nitinol round wire coils, stainless steel braid and stiffer polymers — pushable and supportive in the arch, eliminating the need for a guide
• Available diameter x length configurations: 0.074 x 95 cm; 0.074 x 105 cm; 0.074 x 110 cm
