Motion assessment system 2DMA

gaitpostureautomatic

Overview
Portable 2D optical motion capture and analysis software based on HD, high-speed video. Designed for rapid assessments at fixed or temporary locations, 2DMA delivers visual, actionable results for gait, running and cycling evaluations for practitioners, coaches and bike fitters.

Main features

• 1080p video feed providing millimetric accuracy for marker tracking and angle calculations.
• Supports 1 or 2-camera configurations (side, side+back, side+side).
• 50+ automatic biomechanical measurements with discipline-specific reference ranges.
• Fast reporting: generate detailed session reports in DOCX or PDF in seconds; option to add a custom logo.
• Advanced options: custom annotations and measurements, editable reference ranges, configurable video file settings.
• Comparison modes: single-recording analysis or compare two recordings (overlap or side-by-side).
• Acquisition rates: 50–60 FPS (mid-speed) and 100–120 FPS (high-speed).
• Supports both hardware-synced and unsynced camera setups.

Available protocols

• Gait & Running: lateral and bilateral analyses; quick dynamic assessment with a single lateral camera (requires ~1.5 m free space).

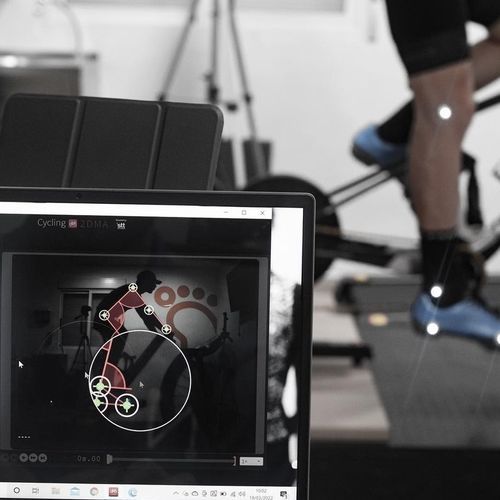

• Cycling: dynamic pedalling analysis with 1 or 2 cameras; full-body cycling analysis on free or fixed trainers; bike measurements for Road, TT-Aero and MTB (recommended free space ~2×2.5 m or 3×3 m).
• Free module: record and measure from any plane, perform static measurements, add annotations and generate custom reports.

What is included
Complete software and hardware package:

• Software: annual license (1 year) including updates and support; selectable analysis protocols.
• Cameras: 1 or 2 camera configurations or import mode; cameras capable of 50–120 FPS.
• Accessories: cables, markers, adhesives, tripod and setup accessories.
• Training & Support: initial guidance for first recordings and tests; support available in specified languages (response within 24 hours as stated).

Reporting & Output

• Export session reports in DOCX or PDF with optional client or company logo.
• Optimized workflow for rapid report generation.

Case studies & use
Deployed for sport and clinical applications: gait, running and cycling biomechanics, bike fitting and functional assessments. Suited for portable evaluations in temporary locations.

FAQs — key practical information

• Minimum PC (indicative): Intel Core i5 (i7 preferred, 4-core recommended); 8 GB RAM (16 GB recommended); 2 GB installation space (additional storage required for video); SSD recommended; dedicated USB 3.0 ports for each camera (no hubs); OS: Windows 10 (64-bit).
• Acquisition frequency: 50–60 FPS or 100–120 FPS.
• Portability: designed for mobile use; calibration under 1 minute.
• Automatic bike adjustment: no — provides bike-fitting parameters and guidance; manual tools available for bike distances and angles; session-level bike registration supported.
• Bike types supported: MTB, Road, Aero-TT.
• Shipping: two boxes approx. 71 × 63 × 36 cm (15 kg) and 12 × 12 × 170 cm (3 kg).

Notes
System optimized for quick setup and configurable measurement/reporting tools to adapt to sports and clinical protocols.

Technical specifications

• Product name: 2DMA
• Brand: Motio
• Video resolution: 1080p
• Frame rates supported: 50–60 FPS, 100–120 FPS
• Automatic measurements: 50+ metrics
• Camera configurations: 1 or 2 cameras; import mode supported
• Sync: hardware-synced and unsynced cameras supported
• Reporting formats: DOCX, PDF
• Software license: annual (includes updates and support)
• Typical required free space: Gait ~1.5 m; Cycling ~2×2.5 m or 3×3 m
• Included accessories: cables, markers, adhesives, tripod, etc.
• Minimum PC: Intel Core i5 (i7 preferred), 8 GB RAM (16 GB preferred), Windows 10 64-bit, dedicated USB 3.0 ports per camera
• Shipping boxes (approx.): 71 × 63 × 36 cm (15 kg) and 12 × 12 × 170 cm (3 kg)
