Motion assessment system EDDO

gaitpostureautomatic

Overview
EDDO is the portable version of the 3DMA system: a 3D motion capture and analysis solution for rapid on-site biomechanical assessments. It records high-speed motion up to 120 FPS using a pre-calibrated plug-and-play camera unit and performs side-specific analyses. The system includes the hardware and software needed to run fast evaluations in temporary or permanent locations and supports cycling, gait, running and single-joint assessments.

Main capabilities

• Portable plug-and-play 3D motion capture and analysis system
• High-speed capture up to 120 FPS using three synchronized high-frequency cameras
• Synchronized infrared illumination (850 nm) for marker detection
• Real-time motion evaluation and configurable biofeedback rules
• Automatic event detection and real-time biomechanical calculations
• Automatic report generation with pre-designed and customizable templates
• Integration and synchronization with third-party devices (EMG, high-frame-rate color cameras, force plates, pressure plates)
• Annual software license including updates and technical support

EDDO features (high level)

• Protocols: running, cycling, gait analysis and individual joint modules
• Integration: operate and synchronize with EMG, HFR cameras, force and pressure platforms
• Biofeedback: real-time evaluation with custom rule creation
• Portable design: pre-calibrated camera unit, compact transport case and tripod for rapid setup
• Annual license model with updates and support
• Advanced algorithms: automatic event detection and on-the-fly calculations
• Reporting: automatic generation of customizable reports and access to full biomechanical curves
• Ease of use: installation assistance and multi-level training provided

Protocols & Modules
Cycling

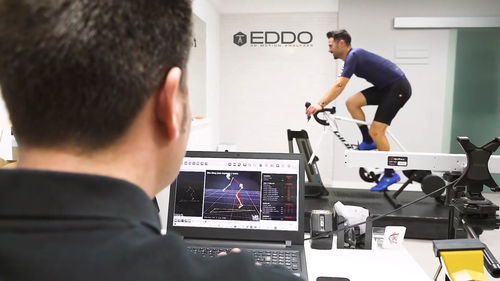

Quick dynamic assessment of cycling motion while pedaling. EDDO integrates three synchronized high-frequency cameras (120 Hz) with infrared illumination in a pre-calibrated unit. Typical setup includes tripod, markers and transport case; recommended distance ~2 meters between camera and subject for immediate capture.
Included cycling protocols:

• Lateral cycling full-body analysis on fixed trainer (left side)
• Lateral cycling full-body analysis on fixed trainer (right side)

Gait
Lower-limb capture (both sides and pelvis) with gait-specific parameters and calculations presented clearly. Generates comprehensive reports and can be complemented with pressure or force platforms and surface EMG.
Available gait protocols:

• Lower-body gait analysis from behind
• Lower-body rear capture at speeds up to 10 km/h for specified protocols

Run
Rapid dynamic assessment of gait and running to evaluate posture, cadence, foot contact and provide injury-prevention insights. Requires a small free area (approx. 2–2.5 m²) and a simple setup workflow, suited to portable use.
Available run protocols:

• Run analysis lower body from behind
• Lower-body rear capture at speeds up to 10 km/h for specified protocols

Joints
3D measurement and reporting for individual joints with fast access to biomechanical curves and complete reports. Can be combined with pressure/force platforms or surface EMG.
Available joint protocols:

• Lumbar (2-point analysis)
• Dorsal spine
• Hip flexion-extension, left and right
• Hip abduction
• Hip rotation
• Shoulder and elbow, left and right
• Elbow analysis (discontinued), left and right
• Knee analysis, left and right
• Ankle analysis, left and right
• Shoulder rotation, left and right
• Wrist analysis, left and right

Operation workflow

• Fast camera setup using a pre-calibrated camera unit
• Fully portable kit supplied with tripod, suitcase and accessories
• 3-camera recording with synchronized infrared
• Automatic labeling, processing and event detection
• Automatic report generation using templates

What is included
EDDO is delivered as a complete hardware and software package:

• Software: annual license including updates and technical support
• EDDO camera unit: mocap system (up to 120 FPS), pre-calibrated
• Accessories: cables, markers, adhesives, tripod, transport case and setup items
• Training & support: initial recording guidance and multi-level training (support available in English and Spanish)

Technical specifications

• Model: EDDO (portable 3D mocap system)
• Capture rate: up to 120 FPS (three high-frequency cameras)
• Illumination: synchronized infrared at 850 nm
• Capture modes: side-specific analysis; configurable to one side, both sides or side & back depending on protocol
• Setup: plug-and-play pre-calibrated camera unit; tripod, markers and transport case included
• Recommended capture distance: ~2 meters between camera and subject
• Required free space (running): approximately 2–2.5 m²
• Protocol constraints: some gait/run protocols limit speed (e.g., ≤10 km/h for specified rear-capture protocols)
• Integration: synchronous operation with EMG, HFR cameras, force plates and pressure plates
• License: annual software license with updates and support
• Outputs: automatic customizable reports and full biomechanical curves
