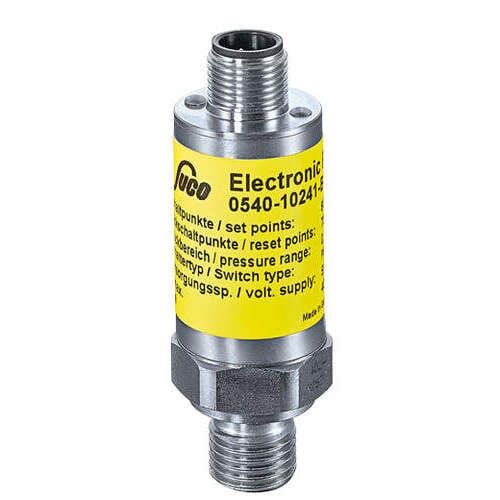

Hex 22 with two switching outputs
Outstanding overpressure protection (up to 4 x)
Ideal choice for mobile hydraulic applications
Long service life even under high pressure change rates
Wetted parts made of stainless steel and titanium ensuring excellent media compatibility
All welded design, no elastomeric seal
Silicon-on-sapphire technology (SoS) for highest reliability, accuracy and reliable process monitoring
Very low temperature error and very good long-term stability
Adjustment of switching point and hysteresis at factory
Electr. connection:
Bajonett
Deutsch DT04-4P
cable connection
M12x1
IP Rating:
IP67
IP67; IP6K9K
Hysteresis:
0,2..99,8 % FS, hysteresis adjustable by factory
Overpressure safety:
40 bar
100 bar
Burst pressure:
80 bar
200 bar
800 bar
2000 bar
Switch function:
Normally open (NO) / normally closed (NC)
Housing material:
stainless steel 1.4305 / AISI 303
Connection:
7/16 - 20 UNF
9/16 - 18 UNF
G 1/4
G1/4 - DIN 3852-E
M10 x 1 zyl. DIN 3852-A
M14 x 1,5 - DIN 3852-E
NPT 1/4
NPT 1/8
Sealing material:
Welded
Measuring cell:
Titanium / SOS
Additional functions:
Display switching status with LED (only M12 connector)
Type:
0542 - PNP (Schließer / Öffner)
Catalogue chapter:
E6
