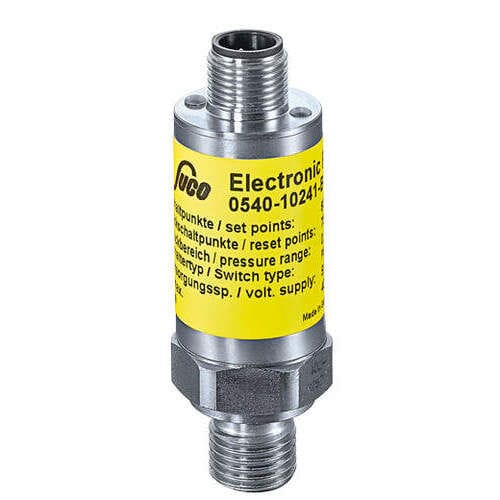

Electronic pressure switch 0544
medicaladjustablestainless steel

electronic pressure switch
electronic pressure switch
electronic pressure switch
electronic pressure switch
electronic pressure switch
electronic pressure switch
Add to favorites
Compare this product


Characteristics

Technology
electronic
Applications
medical
Other characteristics
adjustable, stainless steel, IP67, IP6K9K
Pressure range

Min.: 0 bar
(0 psi)

Max.: 600 bar
(8,702.26 psi)

Description

Hex 22 with two switching outputs Outstanding overpressure protection (up to 4 x) Ideal choice for mobile hydraulic applications Long service life even under high pressure change rates Wetted parts made of stainless steel and titanium ensuring excellent media compatibility All welded design, no elastomeric seal Silicon-on-sapphire technology (SoS) for highest reliability, accuracy and reliable process monitoring Very low temperature error and very good long-term stability Adjustment of switching point and hysteresis at factory Electr. connection: Bajonett Deutsch DT04-4P cable connection M12x1 IP Rating: IP67 IP67; IP6K9K Hysteresis: 0,2..99,8 % FS, hysteresis adjustable by factory Overpressure safety: 40 bar 100 bar Burst pressure: 80 bar 200 bar 800 bar 2000 bar Switch function: Normally open (NO) / Normally open (NO) Housing material: stainless steel 1.4305 / AISI 303 Connection: 7/16 - 20 UNF 9/16 - 18 UNF G 1/4 G1/4 - DIN 3852-E M10 x 1 zyl. DIN 3852-A M14 x 1,5 - DIN 3852-E NPT 1/4 NPT 1/8 Sealing material: Welded Measuring cell: Titanium / SOS Additional functions: Display switching status with LED (only M12 connector) Type: 0544 - NPN (Schließer / Schließer) Catalogue chapter: E6
