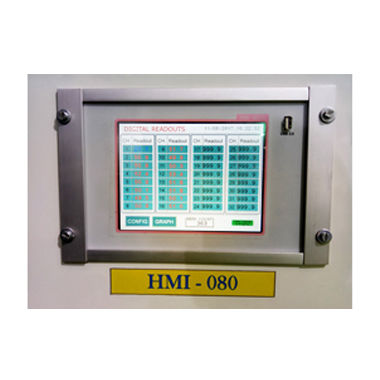

Temperature data logger DL 080

humiditypressureuniversal

The DL 080 is versatile general purpose universal input data logger with 8, 16 up to 32 analog inputs channels to measure process input signals from temperature sensors, humidity sensors, 0 - 5 Vdc or 4 - 20 mA signals from pressure sensors. The logging is automatically triggered at pre-programmed time intervals. A variety of communication ports are included like RS - 232 or RS - 485, USB 2.0 and 10 / 100M Ethernet port, Parallel or Printer port. This enables data transfer from logger to any external devices. It is a small, truly portable logger which also suitable for bench based or panel mounted installations. Easily programmed via the seven integral push buttons and large graphical TFT display and with basic accuracy of 0.1% FSD. The DL 080 is able to fulfil many routine data logging needs, including more demanding applications requiring up to 8 readings per second per 8 channel. Key Features Small truly portable data logger 8 to 32 universal analog inputs ( RTD, Thermocouples, 0-5Vdc, 0-20mA or 4-20mA signal inputs) Individual HI/LO Alarm set points shown with color toggling on display. Alarm relay outputs with optional DIN rail mounting relay module. Configured via large easy-to-read Multicolor 8.0 Inch Graphical TFT Display, Resolution 640x480 pixels. 0.1% accuracy. Non volatile storage up to 7000 readings per channel. Supplied with PC based Data acquisition software. Technical Specifications No. of analogue channels - 8, 16, 24, 32& 48 inputs models Universal Input - Yes Voltage ranges - 0-5 Vdc Single ended. Current ranges - 0-20mA, 4-20mA. Alarm Outputs - Alarming signals to Relay board (optional) via Rs232 serial port.
