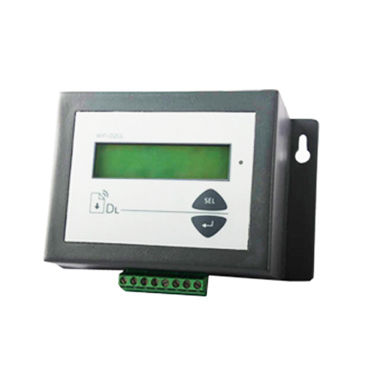

Temperature data logger Wi-Fi-02-UL

humidityfor pharmaceutical productswireless

This system is used for multi-point data accumulation e.g. if there are multiple points where temperature & Humidity (or any two analog parameters) are to be monitored and recorded locally. The alarms will be generated locally. Such multiple instruments will be interfaced to a PC through a centralized receiver. Application Areas Blood Banks, Pharmaceutical store rooms, Deep Freezer Temperature Monitoring, HVAC room temperature monitoring, Plastic molding plants, applications where production / production parameters are need to be monitored centrally. Optional Features USB port for each data logger to download the stored data locally GSM ( SMS Facility ) in the receiver to report the alarming conditions to the concerned persons over SMS Technical Specifications Input - Analog 1 - PT100 / PT1000 / 4 - 20 mAmp / 0 - 5 VDC Input - Analog 2 - PT100 / PT1000 / 4 - 20 mAmp / 0 - 5 VDC ( For Both inputs the type is Factory Selectable ) Excitation Voltage : - Excitation Voltage for sensors is generated through the data logger keeping the sensor alive on the internal battery in case of main power failure. Display : - 16 Character x 2 Line alphanumeric LCD Display A - D Converter : - 18 Bit Analog to Digital Converter Logging Interval : - 1 Sec. to 1hour ( User Selectable ) Logging Types : - Continuous / Value Triggered / Time based Data Storage : - 60,000 Samples ( Expandable to 120,000 Samples )
