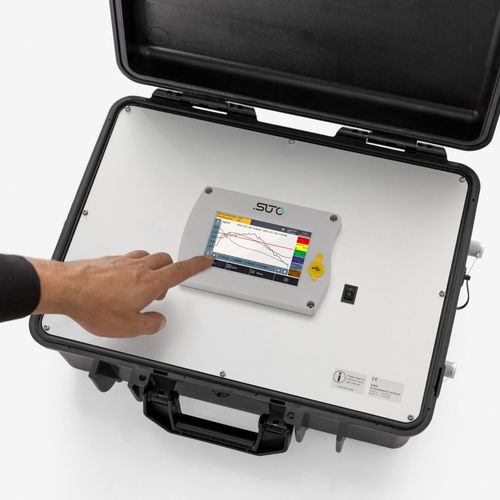

Compressed air analyzer S600
dew-pointpressurepurity

compressed air analyzer
compressed air analyzer
compressed air analyzer
compressed air analyzer
Add to favorites
Compare this product


Characteristics

Tested parameter
dew-point, pressure, compressed air, purity
Applications
laboratory, for the food industry, air quality, for the pharmaceutical industry
Configuration
portable, compact
Other characteristics
with touchscreen

Description

ISO 8573 compliant purity quantification of compressed air systems are bound to time-consuming installations and long-lasting test runs … We think it's time for a revolution: The S600 is unlike its competition. It combines latest sensor-technology, software-guided measurements and a time-saving setup into a mobile phone, touchscreen-controlled multi-tool. The S600 will finish measurement runs in much less time than traditional methods. After that, you don't ever want to leave your new comfort zone again. Trust us. 4-in-1 measuring device High resolution 5” colour touch screen interface Software-guided measurements Particle concentration measurements according to ISO 8573 standards Dew point measurements with multiple sensor technology according to ISO 8573 standards Oil vapor measurements with high precision Pressure measurement Integrated data logger Portable design with 17.7 x 15 x 7.5 inches in size Dew point measurement from -100… +20°C Td Particle measurement from 0.1 < d ≤ 0.5 µm, 0.5 < d ≤ 1.0 µm, 1.0 < d ≤ 5.0 µm Oil vapor measurement from 0.003… 10.000 mg/m³ Please make sure that all components listed below are included in your package. Qty. Description Item No. 1 S600 portable compressed air analyzer in a hand carry case with handle and shoulder belt P560 0600 1 USB OTG memory stick 1 Purge filter for pre-measurement (test kit) 1 Power supply, 230 VAC / 24 VDC 50/60 Hz 2 1.5 m Teflon hose with a quick connector and a compressed air coupling at each ends 1 Operation and instruction manual 1 Certificate of calibration The following items are included only if you have ordered the isokinetic sampling device. 1 Isokinetic sampling device
