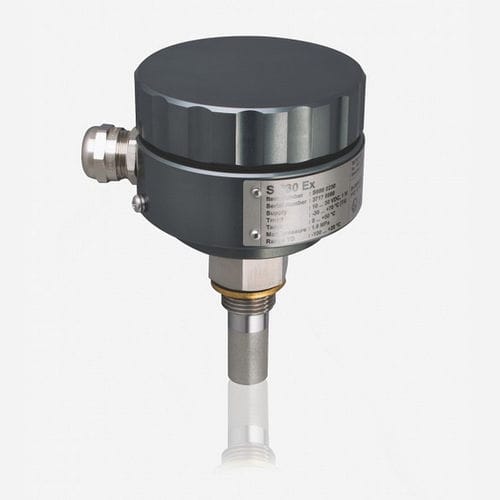

Dew-point sensor S230
medicalmonitoring

dew-point sensor
dew-point sensor
Add to favorites
Compare this product


Characteristics

Evaluation type
dew-point
Applications
medical, monitoring
Pressure range

Max.: 35 MPa

Min.: -0.1 MPa

Description

The SUTO S230 / S231 Heavy-Duty Dew Point Transmitters provide reliable, long-term stable dew point monitoring for compressed air and gases in harsh and hazardous applications. The fast response time ensures safe and reliable indication whenever dew points are out of valid ranges S230 For Low Dew Point Applications The S230 Dew Point Transmitter provides accurate results of a range down to -100 °C Td. This makes it perfectly suitable for special applications where a low dew point needs to be measured. S231 for Standard Range Applications S231 Dew Point Transmitter comes with a standard range from -50… +50 °C Td, offering a wide range of dew point monitoring applications for compressed air and gases. Ex Areas Solution The optional IECEx approval makes it the perfect tool to be used in explosive environment (Ex area). SUTO’s unique dual sensor technology optimizes sensor sensitivity and accuracy by automatically selecting the ideal sensor type for the situation. User-Friendly Output Signals The S230/S231 come ready to use and simple to install with your choice of 4-20mA or Modbus RTU (RS485) outputs. If required, parameters can be quickly monitored through the SUTO service software. The transmitters can also be connected the SUTO S331 (stationary) or S551 (portable) data logger and the data can be transferred for further analysis. ApplicationTechnical Dew point measurement in explosive environments Outdoor / all-weather flow applications Explosive environments

Catalogs
