Flow analyzer AMI Codes-II O3
NOintegrityozone

flow analyzer
flow analyzer
Add to favorites
Compare this product


Characteristics

Tested parameter
flow, NO, integrity, ozone
Applications
for water purifier, for the pharmaceutical industry
Operating mode
automatic, continuous
Configuration
wall-mounted
Tested marker
DPD

Description

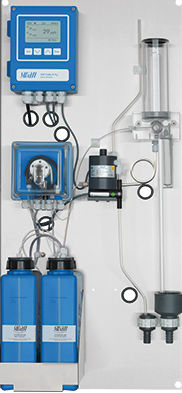

AMI Codes-II O3 is a proven, low-maintenance monitor for the measurement of trace concentrations down to 1 ppb of ozone in water for pharmaceutical purposes. Using the robust colorimetric standard measurement method (DPD) according to DIN 38404-3, it is ideally suited to reliably prove the continuous protection of water storage systems against microbial growth as well as the absence of ozone before the water is used in a pharmaceutical production process. Features Measurement range 0-500 ppb suitable for all ozone-sanitized water storage systems No sensitivity loss: reliable results even during longer-term absence of ozone Assured long-term stability through automatic zero point detection as part of every measurement Factory calibrated; simple verification of instrument performance with a filter set Continuous monitoring of sample flow assures integrity of measured data Your benefits Straight forward instrument set-up and qualification allows rapid plant integration Save time due to easy maintenance and no running-in time after maintenance Confidently protect your production facilities from contamination with ozone-containing water Avoid production interruptions through maximum instrument availability Keywords: Ozone analyzer, ozone sanitization, water for pharmaceutical purposes, purified water (PW), highly purified water (HPW), water for injection (WFI), water distribution and storage, on-line measurement Specifications Ozone measurement - Measuring range - 0 to 500 ppb Accuracy - ±1 ppb or 5% (whichever is greater) Limit of detection - 1 ppb Cycle time - 5 ... 10 min. (default 6')
