LC chromatography system S 741

samplingUV/VIS

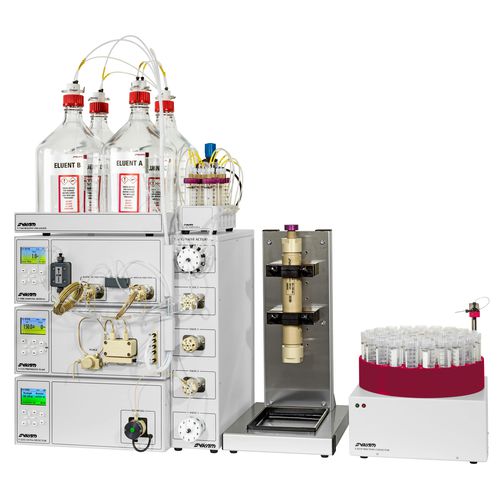

A metal free bio-compatible PEEK system based on the S 1525 pump with flow rate ranges up to 150 ml/min, 250 ml/min, 500 ml/min or 1000 ml/min @ 350 bar. Description The Sykam S 741 Preparative LC System is an isocratic PEEK system based on the Sykam S 1525 pump which is available with four flow rate ranges. The user can choose for up to 150 ml/min, 250 ml/min, 500 ml/min or up to 1000ml/min. Each version has a pressure range of up to 350 bar. The system is completed with the S 5400 sampling module and the S 3255 UV/Vis detector. An easy upgrade with the external S 8140 low pressure gradient mixer converts the system to a gradient system. Technical Specifications Flowrate range - up to150 ml/min, up to 250 ml/min, up to 500 ml/min or up to 1000 ml/min Max. pressure - 350 bar Gradient - Isocratic, upgradable with S 8140 Low-Pressure Gradient Mixer Detector - UV/Vis (190 – 800 nm), pathlength 0.5 mm Sample injection - Automatic, manual, 10 ml sample loop, 2 ml sample loop
